The Outer Sheath: The First Line of Defense

The polychloroprene rubber (commonly known as neoprene) outer sheath is where this cable truly shines in industrial applications. This tough exterior offers remarkable resistance to:

• Oil and chemicals that would quickly degrade lesser cables

• Abrasion from rubbing against equipment or structures

• Weather elements including UV radiation and moisture

• Flame propagation, adding a crucial safety element

This multi-talented outer layer allows the cable to perform reliably in environments that would quickly destroy standard electrical cables.

Color-Coded for Clarity and Safety

Proper identification is crucial for safe electrical installations, and 2PNCT-SB cables employ a standardized color-coding system that makes installation and maintenance straightforward:

• 2-core: Black, White

• 3-core: Black, White, Red

• 4-core: Black, White, Red, Green

• 5-core: Black, White, Red, Green, Yellow

• 6-core: Black, White, Red, Green, Yellow, Blue

For configurations with 7 cores or more, combinations of these six basic colors are used to create unique identifiers for each conductor. This seemingly simple feature significantly reduces wiring errors during installation and troubleshooting.

Technical Capabilities That Power Industry

The 2PNCT-SB cable doesn't just survive in industrial environments—it's built to perform exceptionally well under demanding conditions. With a rated voltage of 600V AC, it undergoes rigorous testing at 3000V for one minute to ensure electrical integrity. The insulation resistance is maintained at a minimum of 1000 MΩ·km at 20°C, providing an exceptional safety margin.

Perhaps most impressive is the cable's mechanical performance. Designed to withstand repetitive bending and flexing, it maintains a minimum bending radius of just 7.5 times its overall diameter. This flexibility, combined with excellent tensile strength, makes it perfect for reeling applications where the cable is constantly being deployed and retracted.

Where You'll Find 2PNCT-SB Cables at Work

These specialized cables find their home in some of the most demanding industrial applications:

Festoon Systems

In overhead cranes and material handling systems, festoon systems allow cables to follow the moving equipment while maintaining proper slack. The 2PNCT-SB's combination of flexibility and durability makes it ideal for these applications where the cable must withstand thousands of bending cycles.

Lift Systems

Elevators and vertical transport mechanisms require cables that can handle the stress of constant vertical movement. The 2PNCT-SB's excellent tensile strength and flexibility make it a natural choice for these critical applications.

General Industrial Machinery

From robotics to portable equipment, any application requiring flexible power delivery without exceeding 600V can benefit from these cables. Their resistance to industrial hazards like oil, heat, and abrasion makes them a smart choice for demanding manufacturing environments.

Installation Best Practices: Getting the Most From Your Cable

Even the best cable will fail prematurely if improperly installed. To maximize the service life of 2PNCT-SB cables, industry professionals follow these key guidelines:

Before Installation

Always verify that the cable specifications match your application requirements. Check for the proper voltage rating, temperature class, and conductor size. Before deployment, inspect the entire length for any shipping damage or manufacturing defects.

During Installation

The minimum bending radius is not just a suggestion—it's a critical specification. Exceeding this limit by bending the cable too sharply can damage the internal structure and lead to premature failure. Ensure proper cable support throughout the installation, with appropriate tension control systems for dynamic applications.

Ongoing Maintenance

Regular visual inspections can catch early signs of wear or damage before they lead to failure. Pay particular attention to areas where the cable experiences the most movement or environmental stress. When damage is found, replace the affected section promptly rather than attempting temporary repairs that could compromise safety and reliability.

How 2PNCT-SB Compares to Alternatives

When selecting the right cable for industrial applications, engineers often compare several options:

2PNCT-SB vs. Standard 2PNCT

While both cable types offer similar flexibility and durability characteristics, the "SB" designation indicates the presence of shielding. This makes 2PNCT-SB the superior choice for environments with significant electromagnetic interference or where signal integrity is paramount.

2PNCT-SB vs. VCT Cables

VCT cables utilize PVC for both insulation and sheath materials. While less expensive initially, they simply cannot match the flexibility, temperature resistance, or environmental durability of 2PNCT-SB cables. The EP rubber insulation and neoprene sheath of 2PNCT-SB provide significantly better performance in harsh industrial conditions.

2PNCT-SB vs. FFCT Cables

For extremely high-temperature applications exceeding 80°C, specialized FFCT cables rated for up to 200°C may be necessary. However, these cables typically don't offer the same flexibility or EMI shielding capabilities as 2PNCT-SB, making them suitable only for specific high-temperature niche applications.

The Value Proposition: Why Quality Cables Matter

While premium industrial cables like Type 2PNCT-SB represent a higher initial investment than basic alternatives, the total cost of ownership tells a different story. Downtime in industrial operations can cost thousands of dollars per hour in lost productivity. A cable failure that shuts down a critical crane or production line quickly erases any upfront savings from choosing less capable cables.

By investing in high-quality cables engineered specifically for demanding applications, operations managers gain:

• Extended service life with fewer replacements

• Reduced maintenance requirements and associated labor costs

• Improved safety with lower risk of electrical failures

• Enhanced reliability with minimal unplanned downtime

Conclusion: The Right Cable Makes All the Difference

In the world of industrial power and control systems, Type 2PNCT-SB (2TC Light-SB) Reeling Rubber Cables represent a perfect example of specialized engineering solving specific challenges. Their unique combination of electrical performance, mechanical durability, and environmental resistance makes them indispensable in applications where standard cables would quickly fail.

The next time you see a massive overhead crane smoothly lifting a multi-ton load, or watch an automated storage system rapidly retrieving products, take a moment to appreciate the specialized cables that make these operations possible. These unsung heroes of industrial power transmission may not be glamorous, but they're essential to keeping modern industry moving forward reliably and safely.

Whether you're designing a new system or upgrading existing equipment, understanding the capabilities and proper application of specialized cables like Type 2PNCT-SB can mean the difference between a system that works and one that works exceptionally well—day after day, year after year, in the most demanding industrial environments.

Frequently Asked Questions (FAQ)

1. What is the Type 2PNCT-SB (2TC Light-SB) Reeling Rubber Cable?

The Type 2PNCT-SB (2TC Light-SB) is a 600V-rated reeling rubber cable designed for dynamic industrial applications requiring high flexibility, durability, and resistance to environmental factors.

2. What are the primary applications of the 2PNCT-SB cable?

It's commonly used in festoon systems, lift systems, and general industrial machinery where cables undergo frequent bending and require robust environmental resistance.

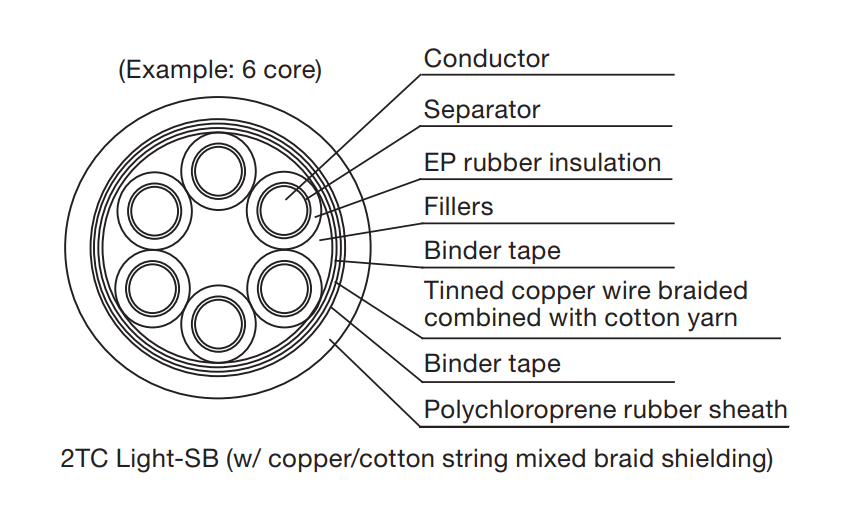

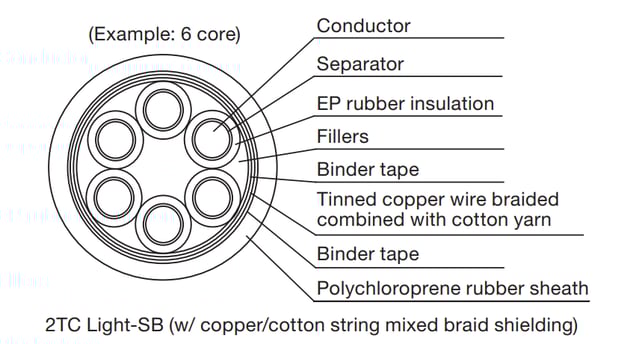

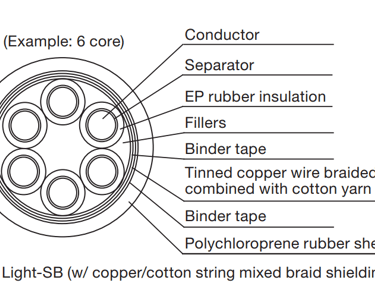

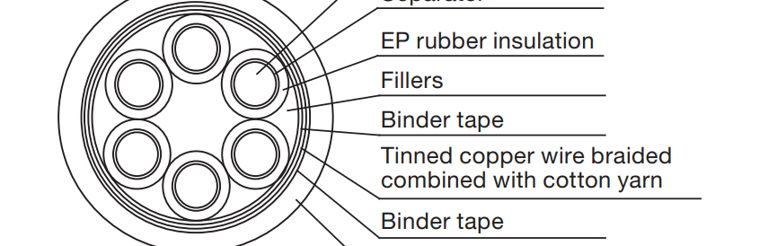

3. What materials are used in the construction of this cable?

It features a tin-coated annealed copper conductor, ethylene propylene rubber (EP rubber) insulation, tinned copper wire braided shielding combined with cotton yarn, and a polychloroprene rubber (neoprene) outer sheath.

4. What is the rated voltage and temperature for the 2PNCT-SB cable?

The cable is rated for 600V AC and can operate in temperatures up to 80°C.

5. How does the shielding enhance the cable's performance?

The tinned copper wire braided shielding combined with cotton yarn provides effective electromagnetic interference (EMI) protection and mechanical reinforcement.

6. What are the benefits of the polychloroprene rubber sheath?

It offers excellent resistance to oil, chemicals, abrasion, weather elements, UV radiation, and flame propagation, ensuring durability in harsh environments.

7. Is the 2PNCT-SB cable compliant with international standards?

Yes, it complies with JIS C 3327 and conforms to the Electrical Appliance and Material Safety Law (excluding cables with 8 cores or more).

8. What is the significance of the color-coded cores?

The standardized color-coding system facilitates accurate installation and maintenance, reducing wiring errors.

9. What are the color codes for different core counts?

• 2-core: Black, White

• 3-core: Black, White, Red

• 4-core: Black, White, Red, Green

• 5-core: Black, White, Red, Green, Yellow

• 6-core: Black, White, Red, Green, Yellow, Blue

• 7-core and above: Combinations based on the six basic colors

10. What is the minimum bending radius for this cable?

The minimum bending radius is 7.5 times the overall cable diameter, allowing for flexibility in dynamic applications.

11. Can this cable be used in outdoor applications?

Yes, the polychloroprene rubber sheath provides resistance to weather elements, making it suitable for outdoor use.

12. What is the maximum conductor resistance?

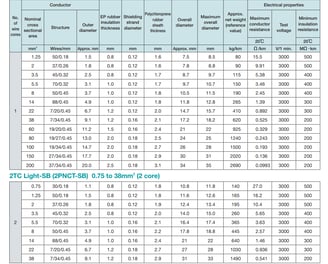

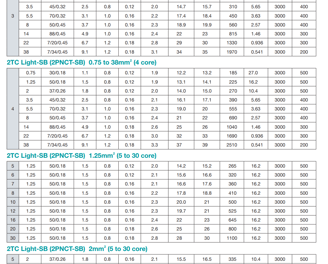

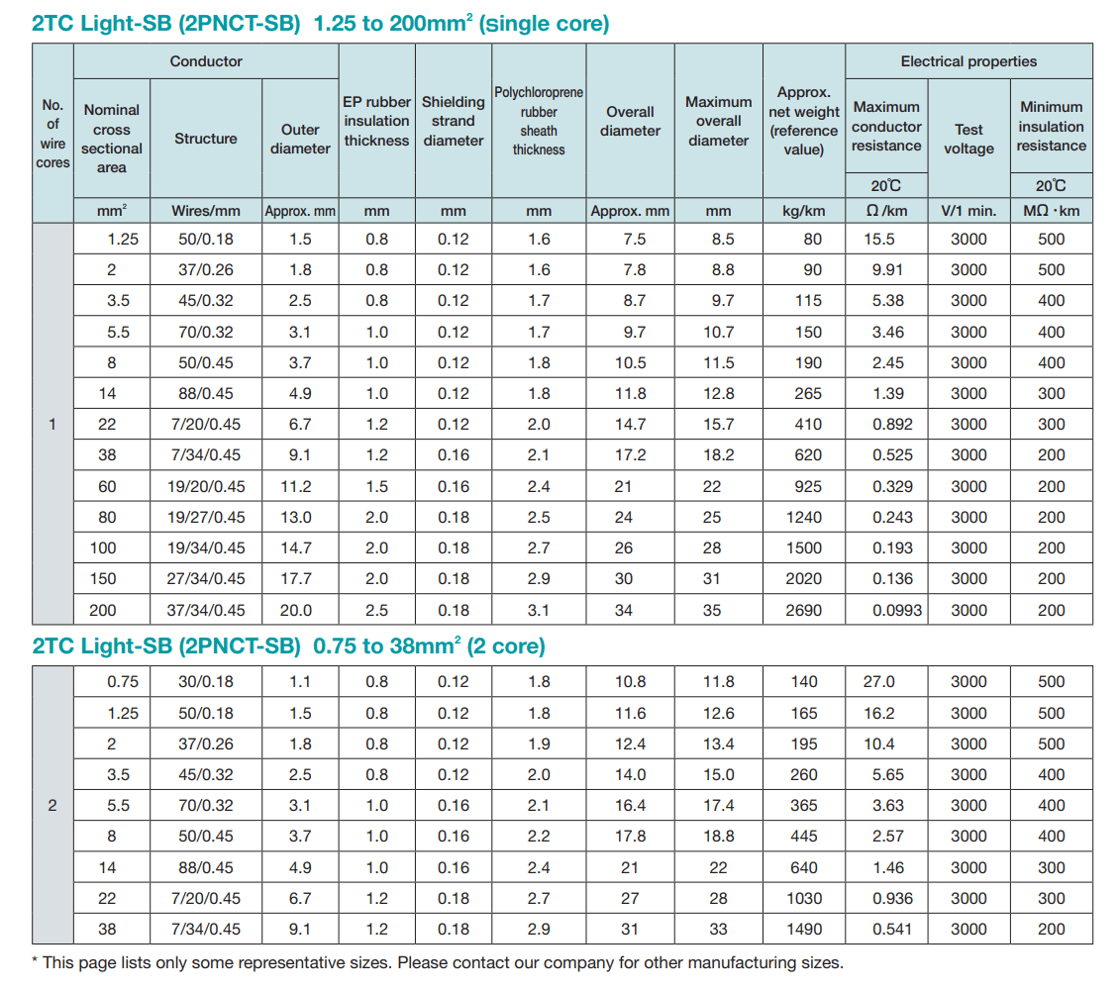

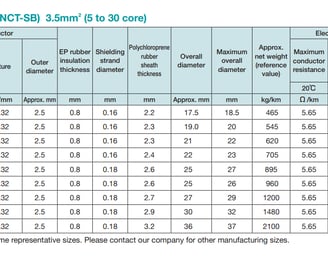

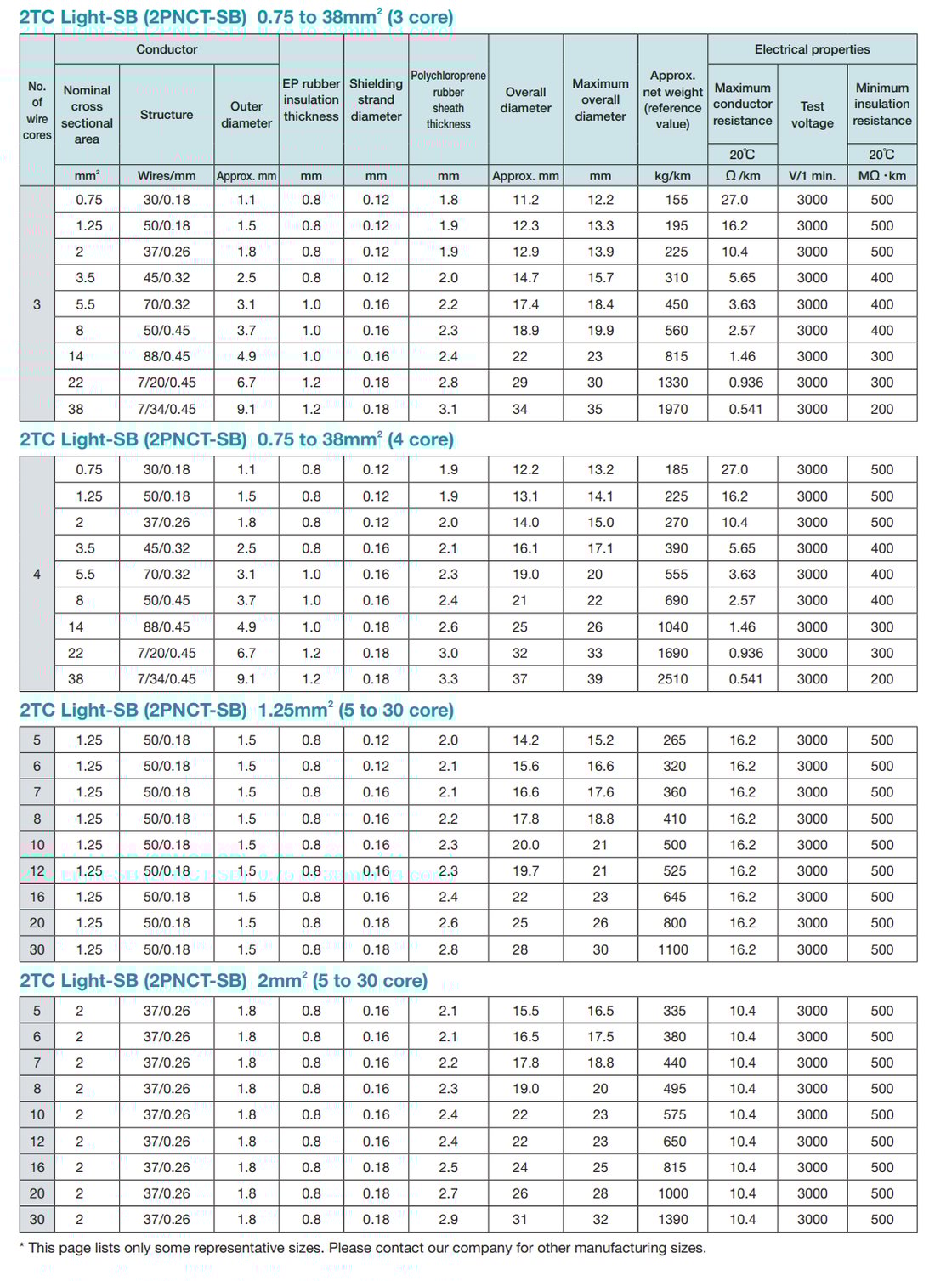

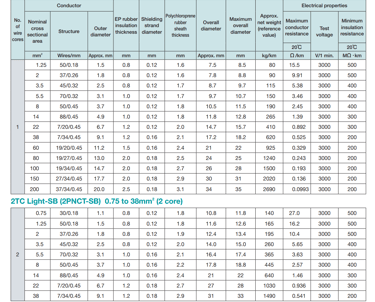

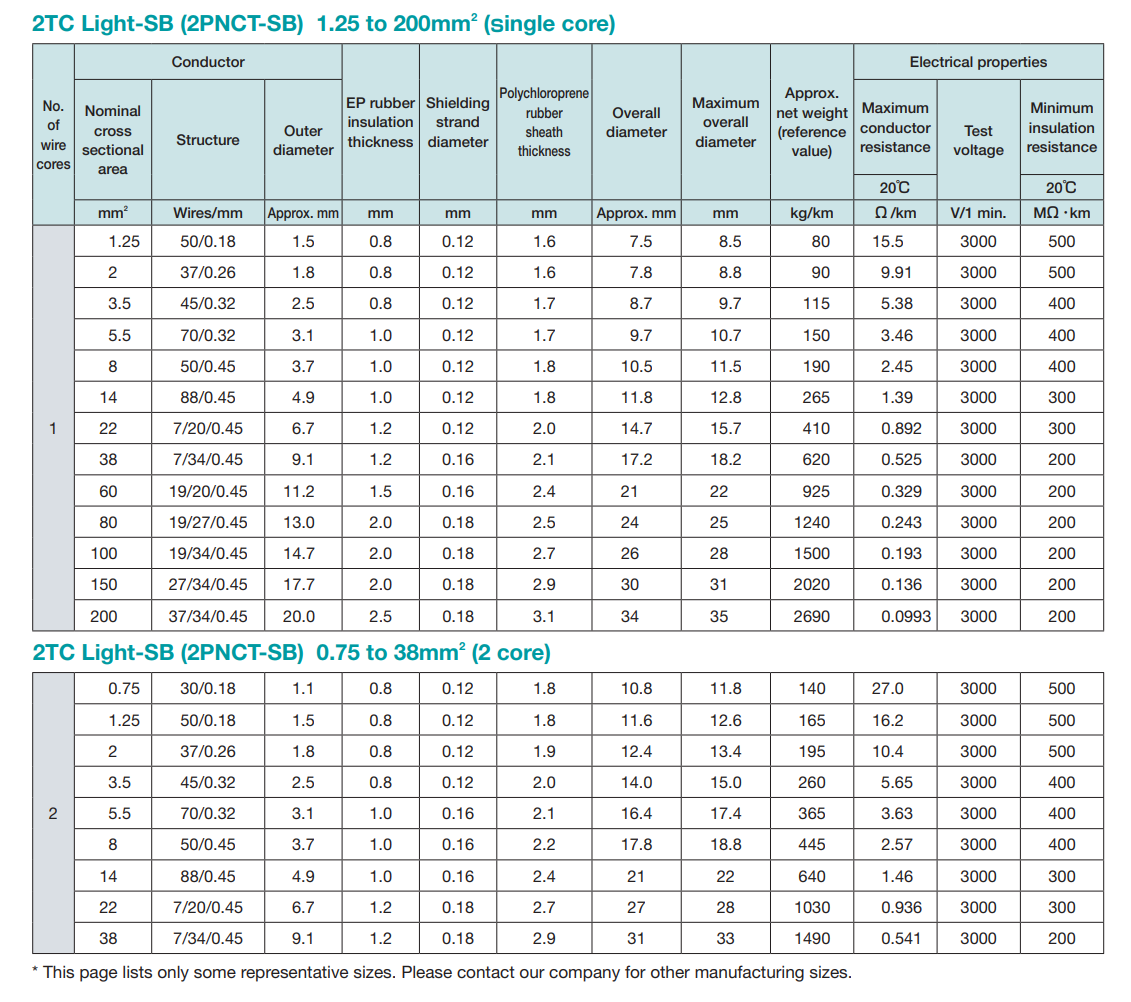

The maximum conductor resistance varies with conductor size; for example, a 1.25 mm² conductor has a resistance of 15.5 Ω/km at 20°C.

13. What is the test voltage for the 2PNCT-SB cable?

The cable undergoes a test voltage of 3000V for 1 minute to ensure electrical integrity.

14. What is the minimum insulation resistance?

The minimum insulation resistance is 1000 MΩ·km at 20°C, providing a significant safety margin.

15. Is the cable suitable for applications with repeated bending?

Yes, it's designed to withstand repetitive bending and flexing, making it ideal for reeling applications.

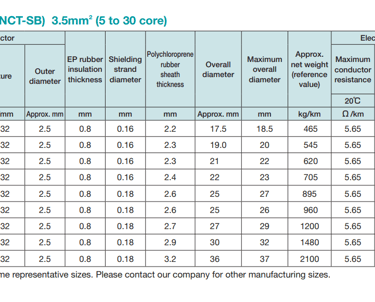

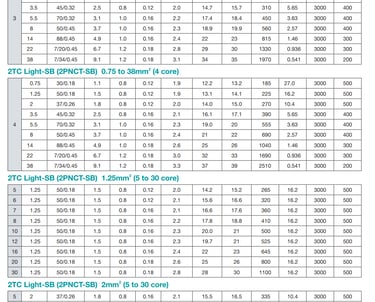

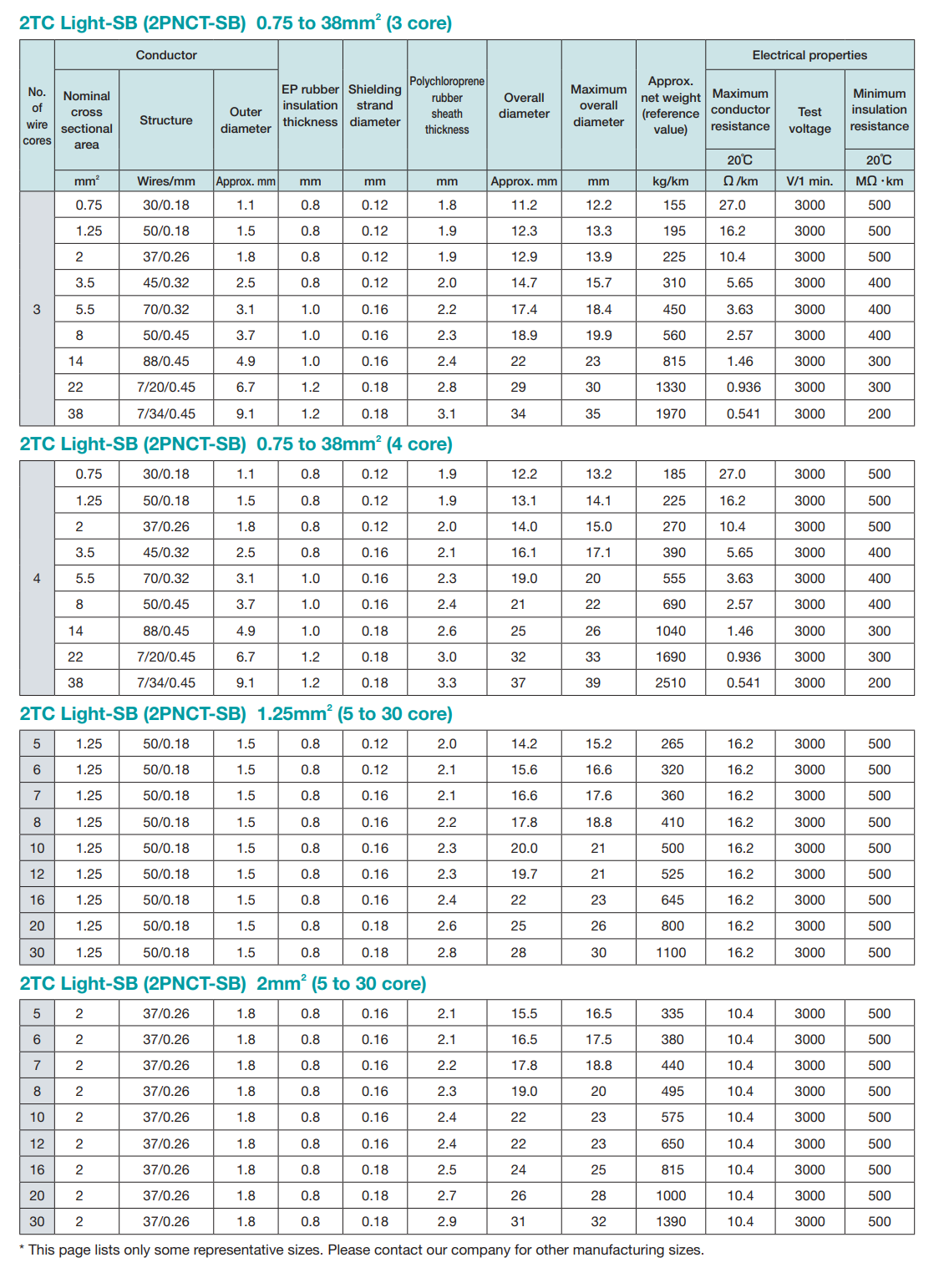

16. What are the available conductor sizes?

Conductor sizes range from 0.75 mm² to 150 mm², accommodating various power requirements.

17. How does the EP rubber insulation benefit the cable?

EP rubber insulation offers superior thermal stability and electrical insulation properties, enhancing the cable's performance.

18. What is the significance of the tinned copper conductor?

Tinned copper conductors provide enhanced conductivity and corrosion resistance, ensuring long-term.

19. Can the cable be used in high-temperature environments?

The cable operates effectively up to 80°C; for higher temperatures, specialized cables like FFCT may be more suitable.

20. What is the advantage of the cotton yarn in the shielding?

The cotton yarn combined with the tinned copper braid adds mechanical strength and flexibility to the shielding.

21. Is the cable flame-retardant?

Yes, the polychloroprene rubber sheath provides flame retardance, enhancing safety in industrial settings.

22. What are the installation best practices for this cable?

• Verify cable specifications match application requirements

• Inspect for physical damage before installation

• Maintain the minimum bending radius

• Ensure proper support and tension control

• Avoid exposure to conditions exceeding specified ratings

23. How should the cable be maintained?

Regular visual inspections should be conducted to identify wear or damage, especially in areas with frequent movement or environmental stress.

24. Can damaged sections of the cable be repaired?

It's recommended to replace damaged sections promptly rather than attempting temporary repairs to maintain safety and reliability.

25. How does the 2PNCT-SB compare to standard 2PNCT cables?

The 2PNCT-SB includes shielding for EMI protection, making it superior in environments with significant electromagnetic interference.

26. How does it compare to VCT cables?

VCT cables use PVC insulation and sheath, offering less flexibility and resistance compared to the EP rubber and polychloroprene rubber in 2PNCT-SB cables.

27. Is the cable suitable for use in festoon systems?

Yes, its flexibility and durability make it ideal for festoon systems in overhead cranes and material handling systems.

28. Can it be used in lift systems?

Absolutely, the cable's excellent tensile strength and flexibility make it suitable for elevators and vertical transport mechanisms.

29. What are the advantages of using high-quality cables like the 2PNCT-SB?

Investing in high-quality cables ensures extended service life, reduced maintenance, improved safety, and enhanced reliability, leading to lower total cost of ownership.

30. Is the cable resistant to chemicals?

Yes, the polychloroprene rubber sheath provides resistance to various chemicals, making it suitable for harsh industrial environments.

31. What is the cable's resistance to abrasion?

The outer sheath offers remarkable abrasion resistance, protecting the cable from wear due to rubbing against equipment or structures.

32. Does the cable offer UV resistance?

Yes, the sheath's material provides resistance to UV radiation, allowing for outdoor applications.

33. What is the cable's resistance to moisture?

The polychloroprene rubber sheath ensures resistance to moisture, preventing degradation in humid conditions.

34. Is the cable suitable for portable electrical machinery?

Yes, it's designed for power supply circuits of portable electrical machinery and apparatus not exceeding 600V.

35. Where can I purchase the 2PNCT-SB cable?

You can purchase the 2PNCT-SB cable from authorized distributors or directly from manufacturers specializing in industrial cables.
