FEICHUN CRANE CABLES

Engineering Excellence in Industrial Power Solutions

For decades, Feichun has established itself as a premier manufacturer of specialized crane cables designed to power and control heavy industrial equipment. Our comprehensive range of reeling cables serves critical applications across mining operations, port facilities, and marine environments where reliability is non-negotiable.

What Makes Feichun Crane Cables Superior

Feichun crane cables are meticulously engineered to withstand the most demanding industrial conditions. Our cables excel in environments requiring:

• Simultaneous resistance to torsional (twisting) and tensile (stretching) stresses

• Continuous operation during reeling and movement

• Protection against harsh industrial contaminants including oils and greases

• Resistance to UV radiation in outdoor applications

• EMC screening to prevent electromagnetic interference under heavy loads

• Flexibility across wide temperature ranges (-20°C to +70°C)

• Superior resistance to seawater corrosion and high-salt water mist

• Enhanced durability through Class 5 copper conductors for high-strength, high-bending environments

Our Product Range

Flat Cable Solutions - PROTOLON (FL) Series

Our PROTOLON (FL) series delivers exceptional performance in applications requiring flat cable configurations. These cables feature a unique flat design that helps prevent twisting and provides efficient space utilization in reeling applications.

The FL series utilizes specialized construction techniques that ensure optimal mechanical stability while maintaining the flat profile required for specific reeling applications. The LWL variants incorporate fiber optic capabilities, allowing for simultaneous power and data transmission in a single cable solution—ideal for modern smart cranes and automated systems.

Medium Voltage Reeling Cables

Our extensive range of medium voltage solutions covers virtually every industrial application requirement:

PROTOLON XPRT Series - Expert-Grade Performance

The XPRT series represents our premium offering, engineered for the most demanding applications where failure is not an option. These cables feature:

• Reinforced construction for maximum mechanical durability

• Superior insulation properties for reliable operation in extreme environments

• Enhanced screening against electromagnetic interference

• Exceptional flexibility retention even after thousands of reeling cycles

• Specialized compound formulations for resistance to oils, UV, and marine environments

The XPRT series is particularly well-suited for applications with continuous operation requirements, extensive reeling cycles, and exposure to harsh environmental conditions. The specialized "K" designation in the LWL models indicates enhanced structural support for the fiber optic elements, ensuring reliable data transmission even under extreme mechanical stress.

PROTOLON SMRT Series - Smart Performance

Our SMRT series offers an excellent balance of performance and value for standard industrial applications:

The SMRT series utilizes advanced materials and manufacturing processes to deliver reliable performance while optimizing cost efficiency. These cables are ideal for applications with moderate operational demands and standard environmental conditions.

Low Voltage Reeling Cables

Our low voltage solutions provide exceptional reliability for standard industrial applications up to 1kV:

TROMMELFLEX Series

• TROMMELFLEX PUR-HF D12Y11YU11Y 0,6/1KV: Features a specialized polyurethane sheathing for enhanced durability and flexibility. This cable excels in applications requiring resistance to abrasion, cuts, and tears, making it ideal for mobile equipment in demanding environments. The halogen-free formulation ensures safety in enclosed spaces.

CORDAFLEX Series

• CORDAFLEX XPRT (N)SHTOEU 0,6/1KV: Our premium low-voltage solution offers maximum mechanical strength and durability. Ideal for applications with continuous operation and high reeling cycles, such as container handling equipment and heavy-duty industrial cranes.

• CORDAFLEX SMRT (N)SHTOEU 0,6/1KV: Balances performance with value for standard industrial applications. Perfect for indoor cranes, hoists, and conveyor systems operating in moderate conditions.

• CORDAFLEX SPCL (N)SHTOEU 0,6/1KV: Specialized configurations for unique applications with specific requirements, including custom conductor arrangements and specialized sheathing compounds for extreme temperature, chemical resistance, or flexibility needs.

These low voltage cables feature our proprietary insulation system that maintains excellent electrical properties even after years of flexing and environmental exposure. The optimized conductor layout ensures minimal internal stress during operation, extending service life significantly.

Shore-Connection Systems

Our specialized shore-connection system cables are engineered specifically for marine and port applications:

PROTOLON (SC) Series

• PROTOLON (SC) (N)TSCGEWOEU 6/10KV: Medium voltage shore connection cable with enhanced seawater resistance and specialized sheathing for port environments. Ideal for medium-sized vessels and standard port facilities.

• PROTOLON (SC) (N)TSCGEWOEU 8,7/15KV: Higher voltage rating for larger vessels and high-capacity shore power connections. Features reinforced construction and superior salt-water resistance.

• PROTOLON (SC) (N)TSKWOEU 0,6/1KV: Low voltage shore connection solution for smaller vessels and auxiliary systems. Offers excellent flexibility and handling characteristics for frequent connection/disconnection cycles.

The SC series incorporates specialized compounds that resist degradation from saltwater exposure while maintaining excellent electrical properties. These cables feature enhanced UV protection for extended service life in exposed marine environments and are designed to withstand the mechanical stresses associated with ship-to-shore power transfers.

Spreader Cables

Our SPREADERFLEX series is specifically designed for container handling equipment where reliability is critical for operational efficiency:

Basket Operation Models

• SPREADERFLEX BSKT XPRT 3GSLTOE 0,6/1KV: Three-phase configuration optimized for basket-type container spreaders. Features enhanced abrasion resistance and excellent flexibility in varying temperatures.

• SPREADERFLEX BSKT XPRT SYSLTOE 0,6/1KV: System-integrated design with optimized conductor arrangement for control systems in basket operations. Offers superior mechanical durability and resistance to oils and hydraulic fluids commonly found in container handling environments.

Reel Operation Models

• SPREADERFLEX REEL XPRT (N)SHTOEU 0,6/1KV: Standard performance model for reel-type container spreader systems. Delivers reliable operation with excellent coiling properties and flex-life.

• SPREADERFLEX REEL XTRM (N)SHT11Y 0,6/1KV: Extreme duty rating for intensive container handling operations. Features maximum abrasion resistance, superior oil resistance, and exceptional mechanical durability for continuous operation in harsh port environments.

These specialized cables incorporate our advanced structural designs that minimize mechanical stress during operation while maintaining optimal electrical properties. The unique sheathing compounds are formulated specifically for the environmental conditions found in container terminals, including resistance to saltwater, UV radiation, and industrial contaminants.

Technical Nomenclature Guide

Understanding our product naming conventions:

• PROTOLON: Our premium crane cable series for medium and high voltage applications

• CORDAFLEX: Our specialized low voltage cable series

• SPREADERFLEX: Our dedicated container handling equipment cable series

• TROMMELFLEX: Our specialized drum-reeling cable series

• (FL): Flat cable configuration for specific reeling applications

• (SC): Shore connection application for marine power transfer

• XPRT: Expert-grade for extreme conditions and maximum service life

• SMRT: Smart-grade balancing performance and value

• XTRM: Extreme-duty rating for the most demanding applications

• LWL: Integrated fiber optic capabilities for data transmission

• BSKT: Optimized for basket-type container spreader operations

• REEL: Designed for reel-type winding systems

• (N): Standardized to international norms

• TSCGEWOEU: Technical specification code indicating:

  • TS: Technical standard compliance

  • C: Copper conductor (Class 5 for maximum flexibility)

  • G: Rubber insulation for optimal electrical properties

  • E: EMC screening against electromagnetic interference

  • W: Weather resistant formulation

  • O: Oil resistant compounds

  • EU: European standards conformity

• TSKCGEWOEU: Enhanced specification with:

  • K: Reinforced protection for integrated fiber optic elements

Applications

Feichun crane cables serve critical functions across numerous industries:

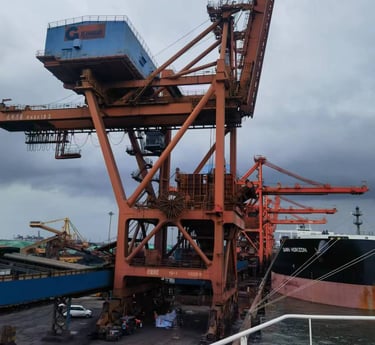

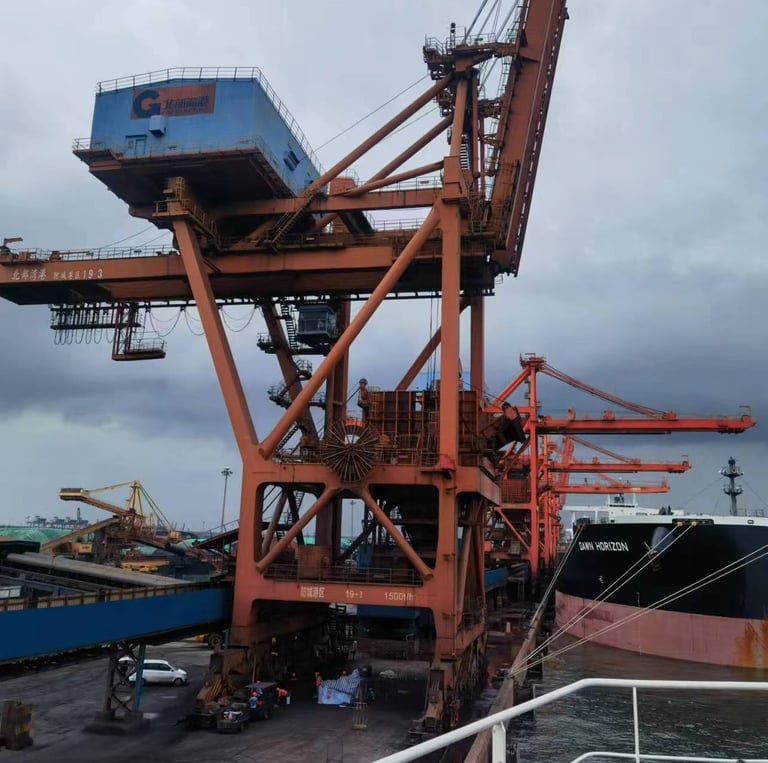

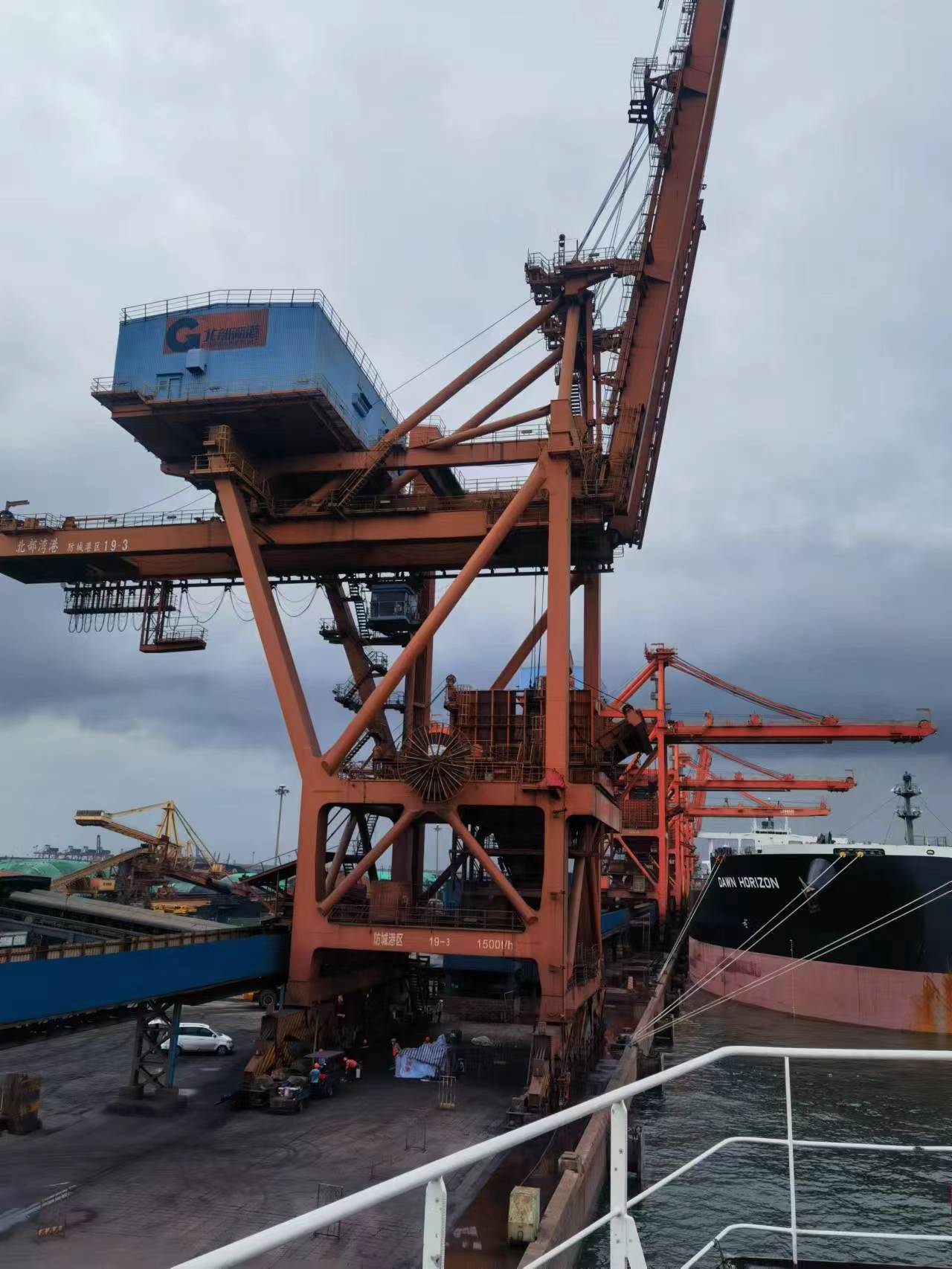

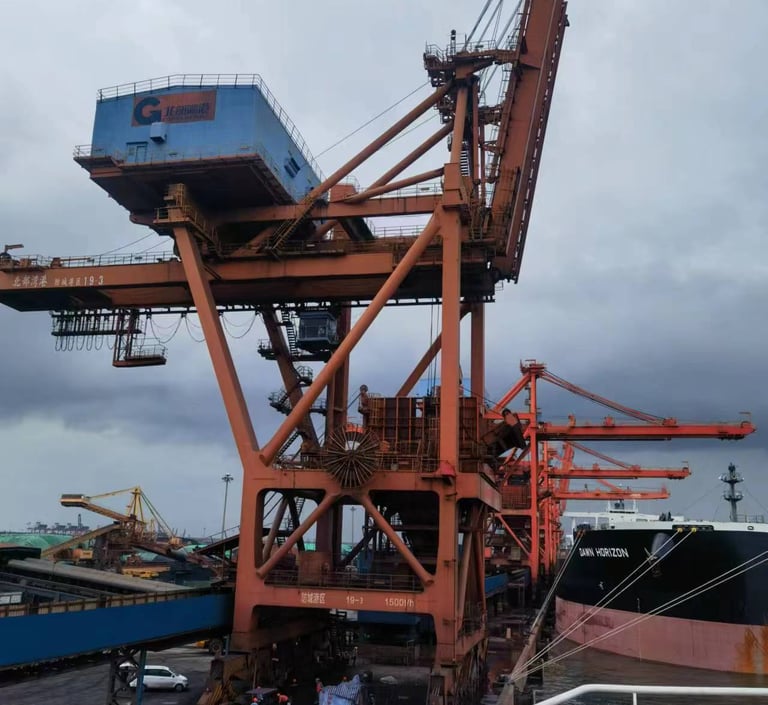

• Port Operations: Container cranes, ship-to-shore cranes, RTGs, straddle carriers

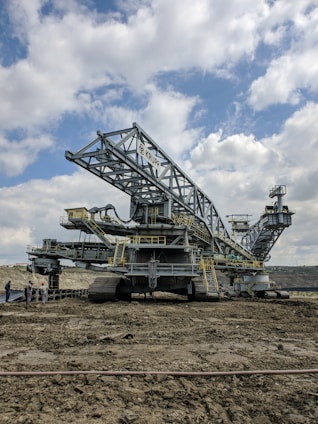

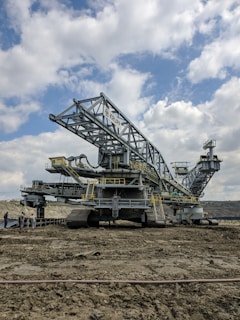

• Mining: Excavators, draglines, stacker/reclaimers, continuous miners

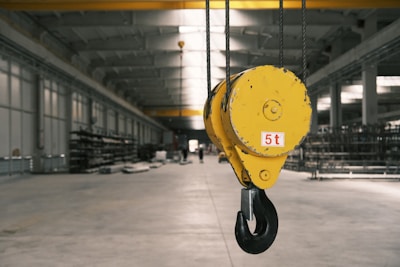

• Manufacturing: Overhead cranes, gantry systems, automated production lines

• Material Handling: Hoists, conveyors, automated storage and retrieval systems

• Marine: Shore power connections, shipboard cranes, offshore platforms

Why Choose Feichun

With decades of experience in crane cable manufacturing, Feichun delivers:

• Uncompromising quality in material selection and manufacturing processes

• Exceptional durability extending operational lifespan even in extreme conditions

• Comprehensive product range covering virtually all industrial applications

• Technical expertise in cable specification and application engineering

• Global support and distribution network

• Customized solutions for specialized requirements

Contact our technical team today to discuss your specific crane cable requirements.
