(N)TSCGEWOEU Medium Voltage Reeling Cable 6/10KV For High-speed Port cranes and container handling systems

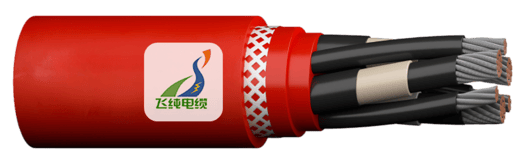

Type (N)TSCGEWOEU 6/10KV Medium Voltage Reeling Cable

Feichun Type (N)TSCGEWOEU 6/10KV Medium Voltage Reeling Cable

Product Overview

The Feichun Type (N)TSCGEWOEU 6/10KV Medium Voltage Reeling Cable is a high-performance flexible reeling cable designed to withstand extreme mechanical stress, making it ideal for use in container cranes, material handling systems, and large-scale mobile equipment.

This cable is engineered to endure high travel speeds, dynamic tensile loads, repeated directional changes across multiple planes, churning over rollers, and torsional stress, ensuring reliable power transmission in demanding industrial environments.

Key Features and Advantages

  • Optimized for Mobile Equipment – Designed for container cranes, shipyard gantry cranes, and high-speed reeling drum applications.

  • High Mechanical Strength – Withstands torsional stress, dynamic tension, and continuous bending.

  • Reinforced Durability – Braided polyester armoring enhances tensile strength and operational longevity.

  • Reliable Electrical Performance – Features semi-conductive EPR insulation, tinned copper conductors, and a high-resilience outer sheath to ensure efficient power transmission.

  • Superior Environmental Resistance – Resistant to oil, seawater, ozone, and UV exposure, making it ideal for harsh industrial and marine environments.

  • High-Speed Reeling Compatibility – Supports unrestricted gantry travel speeds and is recommended for applications exceeding 240 m/min (consult Feichun Cable for high-speed configurations).

Technical Specifications

  • Rated Voltage: 6/10 kV (U₀/U)

  • Test Voltage: 17 kV

  • Nominal Voltage: 10,000 V

  • Maximum Conductor Temperature: 90°C (continuous operation), 250°C (short circuit)

  • Torsional Stress: ±25°/m

  • Permanent Tensile Strength:

    • Static Load: 20 N/mm²

    • Dynamic Load: 30 N/mm²

  • Travel Speed: No restriction for standard gantry operation; consult Feichun Cable for speeds exceeding 240 m/min.

  • Bending Radius:

    • Fixed Installation: 6xD

    • Flexible Operation: 10xD

    • S-Type Directional Changes: 20xD

Material Composition

  • Conductors: Very finely stranded, tinned copper (Class FS) for enhanced flexibility and conductivity

  • Core Insulation: EPR Rubber (PROTOLON HS, Special Compound > 3GI3)

  • Semi-Conductive Layers:

    • Inner Layer: Semi-conductive EPR

    • Outer Layer: Semi-conductive NBR easy-strip

  • Sheath Materials:

    • Inner Sheath: Polychloroprene (PCP) Rubber (PROTOFIRM, Special Sandwich EPR/CR)

    • Outer Sheath: Polychloroprene (PCP) Rubber (PROTOFIRM, Special Compound > 5GM5)

  • Reinforcement: Braided Polyester for increased mechanical strength

  • Cable Design: Three-core layout with split earth conductors for balanced power distribution.

Compliance with Industry Standards

As a globally recognized brand, Feichun Cable ensures that all products meet strict international safety, electrical, and mechanical performance regulations.

  • DIN VDE 0250-813 – Cable construction

  • DIN EN 60228 / IEC 60228 / VDE 0295 – Conductor requirements

  • DIN VDE 0298-4 – Installation guidelines

  • DIN EN 60811-404 / IEC 60811-404 – Mechanical testing

  • GOST-R/-K/-B – Russian Federation Fire Certification

  • Flame Retardancy: EN/IEC 60332-1-2

  • Environmental Resistance:

    • Oil Resistance: Yes

    • Ozone Resistance: Yes

    • UV Resistance: Yes

    • Seawater Resistance: Yes

Primary Applications

The Feichun Type (N)TSCGEWOEU series is designed for industries requiring reliable medium voltage power transmission in high-stress mobile environments. Its durability and efficiency make it suitable for:

  • Container Cranes and Port Machinery

  • Industrial Reeling Systems for Mobile Equipment

  • Shipyard Gantry Cranes and Heavy Lifting Systems

  • Mining, Tunnel Boring, and Large-Scale Industrial Automation

  • Applications Requiring High-Speed Reeling and Real-Time Power Transmission

Why Choose Feichun Cable?

As an industry leader in high-performance industrial cables, Feichun Cable is committed to providing innovative solutions for heavy-duty applications. The Type (N)TSCGEWOEU series combines exceptional mechanical durability, electrical efficiency, and environmental resilience, ensuring long-lasting performance in demanding industrial and marine conditions.

Frequently Asked Questions (FAQ)

  • General Information

    1. What is the Feichun Type (N)TSCGEWOEU 6/10KV reeling cable used for?


    This cable is specifically designed for medium voltage power transmission in high-stress mobile applications, such as container cranes, shipyard gantry cranes, reeling drum systems, and other material handling equipment.

    2. What makes Feichun Cable’s reeling cable different from standard power cables?


    Unlike standard cables, Feichun’s reeling cable is engineered for extreme mechanical stress, featuring torsional resistance, high tensile strength, and reinforced insulation to ensure durability in high-speed reeling operations.

    3. Why is this cable designed for mobile equipment?


    This cable is built to endure continuous movement, high acceleration forces, and repeated bending while maintaining consistent power transmission in container terminals and shipyard automation systems.

    4. What voltage rating does this cable support?


    The Type (N)TSCGEWOEU is rated for 6/10 kV (U₀/U), with a test voltage of 17 kV and a nominal voltage of 10,000 V.

    5. What industries benefit from using this cable?


    This cable is widely used in:

    • Port cranes and container handling systems

    • Shipyard gantry cranes and industrial material handling

    • High-speed reeling drum applications

    • Mining and tunneling machinery

    • Heavy-duty industrial automation

    Application in Port Operations and Shipbuilding Yards

    6. Is this cable suitable for automated container cranes?


    Yes, it is designed for high-speed, automated gantry cranes where it must endure continuous reeling, multiple directional changes, and rapid acceleration without compromising power transmission.

    7. How does this cable perform in harsh marine environments?


    It is resistant to seawater, oil, ozone, and UV radiation, ensuring long-lasting performance in dockside and offshore applications.

    8. Can this cable withstand heavy mechanical loads in shipyards?


    Yes, it features high tensile strength (up to 27,000 N during acceleration) and reinforced polyester braiding to handle extreme mechanical stress.

    9. What is the maximum travel speed this cable can handle?


    There is no restriction for standard gantry operations, but for speeds above 240 m/min, consultation with Feichun Cable is recommended.

    10. How does this cable maintain flexibility in cold weather conditions?


    It can operate in temperatures as low as -50°C (fixed installation) and -35°C in flexible installations, making it ideal for cold-climate ports and shipyards.

    Electrical and Mechanical Properties

    11. What is the maximum conductor temperature during operation?


    The cable can withstand up to 90°C under normal conditions and 250°C in short-circuit situations.

    12. What bending radius should be followed for safe installation?

    • Fixed installation: 6xD

    • Flexible operation: 10xD

    • S-type directional changes: 20xD

    13. How does this cable resist torsional stress in reeling operations?


    It is designed to handle ±25°/m torsional stress, ensuring durability in reeling drum applications.

    14. What is the permanent tensile strength of this cable?

    • Static load: 20 N/mm²

    • Dynamic load: 30 N/mm²

    15. What is the conductor resistance at 20°C?


    The resistance varies by size, with 3x25mm² conductors having 0.795 Ohm/km and 3x300mm² conductors at 0.0654 Ohm/km.

    16. What current-carrying capacity does this cable provide?


    Depending on conductor size, it can carry 131A to 620A, ensuring stable power supply for high-energy-demand machinery.

    Environmental and Safety Standards

    17. Is this cable flame retardant?


    Yes, it meets EN/IEC 60332-1-2 flame retardancy standards.

    18. Can this cable be used in high UV exposure areas?


    Yes, it is UV-resistant, making it ideal for outdoor port and shipyard operations.

    19. Is this cable resistant to oil and chemicals?


    Yes, its special PCP rubber outer sheath provides high resistance to oils, industrial chemicals, and hydraulic fluids.

    20. Does this cable meet international electrical standards?


    It complies with:

    • DIN VDE 0250-813 (Cable construction)

    • DIN EN 60228 / IEC 60228 / VDE 0295 (Conductor requirements)

    • DIN VDE 0298-4 (Installation guidelines)

    • DIN EN 60811-404 / IEC 60811-404 (Mechanical stress testing)

    • GOST-R/-K/-B (Russian Federation Fire Certification)

    Installation and Maintenance

    21. What is the recommended installation method for high-speed reeling applications?


    Install with proper tension control, correct bending radius, and a guided reeling system to maximize lifespan.

    22. How should this cable be stored before installation?


    It should be kept in a dry, covered area, away from direct sunlight and extreme temperatures to maintain its mechanical integrity.

    23. Can damaged sections of this cable be repaired or spliced?


    While possible, full replacement of damaged sections is recommended to maintain optimal performance.

    24. What maintenance should be performed for long-term durability?

    • Inspect sheath integrity regularly

    • Monitor torsional stress in reeling applications

    • Check electrical performance and current capacity

    Ordering and Customization

    25. What sizes are available for this cable?


    Standard sizes range from 3x25+3x25/3 to 3x300+3x150/3, with various configurations available.

    26. Can this cable be customized for specific applications?


    Yes, Feichun Cable provides custom length, conductor size, and sheath material options based on project needs.

    27. Where can this cable be purchased?


    It is available through authorized distributors, industrial cable suppliers, and direct from Feichun Cable.

    28. What warranty does Feichun Cable offer for this product?


    Warranty terms vary; check with Feichun Cable’s sales team for specific details.

    29. Can Feichun Cable provide technical support for installation?


    Yes, Feichun Cable offers expert consultation on installation, maintenance, and performance optimization.

    30. How do I get a price quote for bulk orders?


    Contact Feichun Cable’s sales department for pricing, lead times, and delivery options.
