FESTOONFLEX C-PUR-HF: Ultimate Cable for Extreme Conditions

For Port Machinery Operation and Maintenance Engineers and Electrical Engineers

Introduction

In the demanding world of port operations and industrial environments, the reliability of electrical systems can make the difference between smooth operations and costly downtime. At the heart of these systems lies an often overlooked yet critical component—the electrical cable. When operations involve frequent movement, extreme environmental conditions, or continuous mechanical stress, standard cables simply won't suffice. This is where FESTOONFLEX C-PUR-HF 0.6/1KV enters the picture, representing a pinnacle of engineering designed specifically for the most challenging industrial applications.

Developed to withstand the harshest conditions while maintaining optimal performance, this specialized cable serves as both an energy and control conduit in environments where failure is not an option. Whether installed in bustling port cranes constantly exposed to sea spray, or in manufacturing facilities with complex drag chain systems, FESTOONFLEX C-PUR-HF delivers exceptional reliability where conventional cables would quickly deteriorate.

Understanding Festoon Cable Systems

What Are Festoon Systems?

Festoon systems are specialized cable management solutions designed to supply power and control signals to moving equipment. Unlike fixed installations, festoon cables must accommodate continuous movement while maintaining electrical integrity. These systems typically consist of cables suspended in loops from trolleys that move along a track, allowing the cable to extend and retract as the connected machinery moves.

In port environments, festoon systems are commonly found on:

• Container cranes and gantries

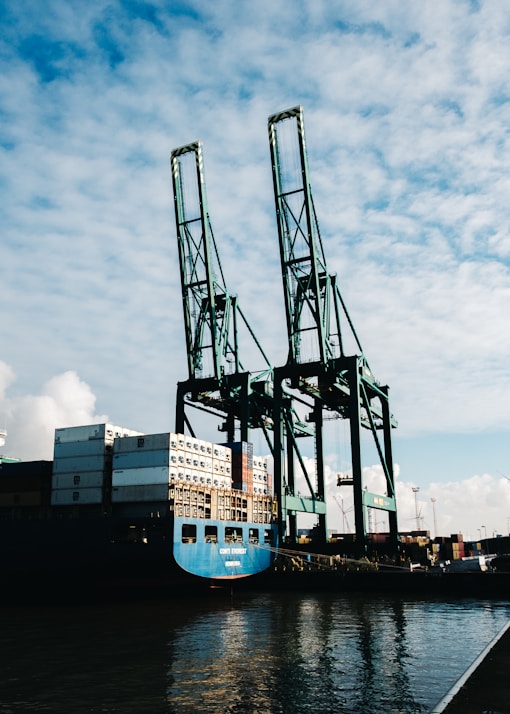

• Ship-to-shore (STS) cranes

• Rail-mounted transfer vehicles

• Stacker-reclaimers

• Automated guided vehicles (AGVs)

The Unique Challenges of Festoon Applications

Festoon applications present several distinct challenges that standard cables cannot adequately address:

• Continuous Flexing: Cables must withstand thousands of bending cycles without developing conductor or insulation fatigue

• Environmental Exposure: Direct exposure to UV radiation, saltwater, extreme temperatures, and industrial chemicals

• Mechanical Stress: High tension during operation and potential abrasion against supporting structures

• Electromagnetic Interference: Proximity to high-power motors and drives requires excellent shielding

• Safety Requirements: Need for flame retardancy and low smoke emission in case of fire

These challenges demand a specialized cable design that goes far beyond conventional electrical cable specifications.

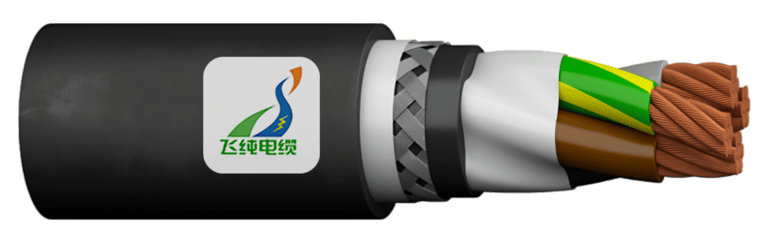

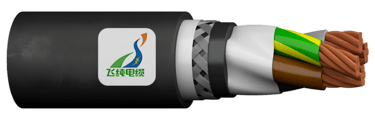

FESTOONFLEX C-PUR-HF: Technical Specifications and Construction

Core Construction and Materials

The FESTOONFLEX C-PUR-HF begins with finely stranded, bare copper conductors conforming to Class 5 flexibility standards (DIN EN 60228/IEC 60228/VDE 0295). This construction provides:

• Superior flexibility compared to standard stranded conductors

• Enhanced vibration resistance

• Improved current-carrying capacity

• Reduced susceptibility to work hardening during repeated flexing

The cores are precisely arranged in parallel and twisted with a short length of lay around a central support element. In many configurations, this central element incorporates aramid threads that provide additional tensile strength—a critical factor when the cable is suspended in festoon systems.

Advanced Insulation System

Each conductor is insulated with high-performance Polybutylene Terephthalate (PBT), a material selected for its:

• Excellent dielectric properties at the rated voltage of 0.6/1KV

• Superior mechanical resilience during repeated flexing

• Resistance to thermal aging

• Low moisture absorption characteristics

• Compatibility with the outer sheathing materials

This core insulation is specifically engineered to maintain its properties even after thousands of operational cycles in variable temperature conditions.

Comprehensive Shielding

Electromagnetic compatibility is essential in industrial environments where control signals must remain uncompromised by nearby power systems. The FESTOONFLEX C-PUR-HF features:

• Individual tinned copper braid screening with over 60% coverage

• Total screen percentage (TSP) exceeding 80%

• Optional aluminum/polyester foil for enhanced EMI protection

• Low transfer impedance across a wide frequency spectrum

This shielding architecture ensures signal integrity even in electrically noisy environments like motor control centers and variable frequency drive applications.

Polyurethane (PUR) Sheathing

Perhaps the most distinctive feature of the FESTOONFLEX C-PUR-HF is its specialized PUR sheathing. The cable incorporates:

• An inner sheath using a special EPR (Ethylene Propylene Rubber) compound (GM1b) for waterproofing

• An outer sheath composed of a proprietary polyurethane formulation that offers:

• Exceptional abrasion resistance (up to 10 times that of standard PVC)

• Outstanding oil and chemical resistance

• Superior UV and ozone stability

• Excellent hydrolysis resistance for underwater applications

• Low-temperature flexibility down to -40°C in dynamic applications

The outer sheath color is typically black for maximum UV resistance, though other colors may be available for specific identification requirements.

Performance Characteristics

Electrical Performance

The FESTOONFLEX C-PUR-HF delivers reliable electrical performance with:

• Rated voltage: 0.6/1KV (1.2KV maximum)

• Test voltage: 2.5KV

• Maximum conductor temperature: 90°C in normal operation

• Short-circuit temperature resistance: Up to 250°C

• Low capacitance design for control signal applications

• Minimal crosstalk between circuits

Environmental Resistance

This cable is engineered to withstand extreme environmental conditions:

• Operating temperature range:

• Fixed installation: -50°C to +80°C

• Flexible installation: -40°C to +80°C

• Waterproof design suitable for permanent immersion up to 50 meters

• Excellent resistance to:

• Seawater

• Industrial oils and greases

• UV radiation

• Ozone

• Common industrial chemicals and solvents

Mechanical Durability

The mechanical specifications of the FESTOONFLEX C-PUR-HF are particularly impressive:

• Permanent tensile strength: 15 N/mm²

• Travel speed capabilities:

• In festoon systems: up to 210 m/min

• In chain systems: up to 210 m/min (performance may vary based on chain length and configuration)

• Minimum bending radius: 6 times the cable diameter (6×D) for fixed installations

• Exceptional abrasion resistance compared to conventional cables

• High resistance to torsional stress

Safety Features

Safety considerations are paramount in industrial environments, and the FESTOONFLEX C-PUR-HF addresses these concerns with:

• Halogen-free composition

• Flame retardancy in accordance with EN/IEC 60332-1-2

• Low smoke emission during combustion

• No toxic gas release during fire conditions

• Compliance with IEC 60754-2 for corrosivity of combustion gases

Applications and Use Cases

Port and Maritime Applications

The FESTOONFLEX C-PUR-HF excels in port environments where exposure to seawater, salt spray, and varying weather conditions is constant:

• Ship-to-shore cranes requiring reliable power and control connections

• Rubber-tired gantry (RTG) cranes with extensive cable movement requirements

• Straddle carriers operating in coastal environments

• Automated container handling systems

• Dockside equipment with underwater cable routing requirements

One significant advantage in these applications is the cable's ability to remain submerged in non-drinking water up to 50 meters without performance degradation—a feature that simplifies installation in tidal areas or where cables must cross water channels.

Material Handling Systems

Beyond port applications, the cable is ideally suited for:

• Overhead cranes in steel mills and foundries

• Automated warehouse systems

• Mining equipment operating in harsh conditions

• Conveyor systems with moving control components

• Bulk material handlers in cement plants and aggregate facilities

Machine Tools and Industrial Automation

The excellent EMI shielding and control signal capabilities make the FESTOONFLEX C-PUR-HF suitable for:

• CNC machine tools with moving axes

• Robotic manufacturing cells

• Automated assembly lines

• Flexible manufacturing systems

• Industrial robots requiring reliable control signal transmission

Drag Chain Applications

While primarily designed for festoon systems, the cable's mechanical properties make it equally suitable for:

• Energy chains in machine tools

• Cable carriers in automated storage and retrieval systems

• Linear motion systems with continuous flexing requirements

• Multi-axis positioning systems

• Mobile equipment with articulated components

Installation and Handling Recommendations

Festoon System Installation Guidelines

To maximize the service life of FESTOONFLEX C-PUR-HF in festoon applications:

• Ensure trolley spacing is appropriately designed for the cable's weight and minimum bending radius

• Maintain proper loop depth to prevent excessive strain during movement

• Install cables with natural twist direction aligned with the loop formation

• Avoid crossing or twisting multiple cables within the same loop

• Consider using cable separators to prevent abrasion between adjacent cables

• Allow sufficient break-in period at reduced speed for new installations

Drag Chain Considerations

When used in drag chains or energy chains:

• Verify the chain's internal dimensions provide adequate space (typically 10-15% larger than the cable bundle diameter)

• Position cables to move freely within the chain without forced crossovers

• Separate power and control cables when possible to minimize interference

• Consider the chain's minimum bending radius in relation to the cable specifications

• For long travel distances, evaluate the need for reduced operating speeds

Underwater Installation

For applications requiring underwater cable routing:

• Ensure cable ends are properly sealed with appropriate waterproof terminations

• Consider additional mechanical protection in areas with potential impact or abrasion

• Verify compliance with local regulations regarding underwater cable installations

• Document precise installation locations for future maintenance

• Consider redundant cables for critical applications

Maintenance and Troubleshooting

Preventive Maintenance

Regular inspection of FESTOONFLEX C-PUR-HF installations should include:

• Visual examination for any sheath damage or unusual wear patterns

• Verification that minimum bending radius requirements are consistently maintained

• Inspection of support structures for any sharp edges or abrasion points

• Measurement of insulation resistance at regular intervals

• Thermal imaging during operation to identify potential hot spots

Common Issues and Solutions

While engineered for extreme durability, potential issues may include:

• Outer Sheath Abrasion: Usually caused by contact with sharp edges or improper support. Solution: Install additional protective sleeves or modify support structures.

• Electrical Interference: May occur if shielding is compromised or improperly grounded. Solution: Verify shield continuity and proper grounding at both ends for control cables.

• Excessive Tension: Can result from improper festoon design or trolley malfunction. Solution: Redesign festoon system to ensure proper cable support throughout the travel range.

• Water Ingress at Terminations: May occur if cable ends are improperly sealed. Solution: Use appropriate waterproof termination methods and regularly inspect seals.

Cost-Benefit Analysis

Initial Investment vs. Lifecycle Cost

While the FESTOONFLEX C-PUR-HF represents a higher initial investment compared to standard cables, the total cost of ownership is often significantly lower when considering:

• Extended service life in demanding applications (often 3-5 times longer than standard cables)

• Reduced downtime due to cable failures

• Lower maintenance requirements

• Minimized risk of catastrophic failure in critical applications

• Protection of connected equipment from electrical faults

For port operations and industrial facilities, the cost of downtime often dwarfs the incremental cost of premium cables, making FESTOONFLEX C-PUR-HF a prudent investment.

Application-Specific Considerations

When evaluating the economic justification for FESTOONFLEX C-PUR-HF, consider:

• Criticality of the application and cost of potential downtime

• Environmental severity and expected cable degradation rate

• Maintenance accessibility and replacement difficulty

• Safety implications of potential cable failure

• Regulatory requirements for specific industries

Conclusion

The FESTOONFLEX C-PUR-HF 0.6/1KV represents the culmination of advanced cable engineering specifically targeted at the most demanding industrial applications. Its unique combination of superior mechanical durability, environmental resistance, and electrical performance makes it the definitive choice for port machinery, material handling systems, and industrial equipment operating in extreme conditions.

For engineers responsible for specifying cables in these challenging environments, the FESTOONFLEX C-PUR-HF offers peace of mind through its exceptional reliability and durability. While the initial investment may be higher than standard cables, the extended service life and reduced maintenance requirements deliver compelling long-term value.

In applications where failure is not an option—where equipment must operate reliably in harsh environments with continuous movement—FESTOONFLEX C-PUR-HF stands as the ultimate cable solution, ensuring uninterrupted operation even under the most extreme conditions.

References

1. "Festoonflex C-PUR-HF Screened Cable 0.6/1kv." Tullyn Trading. https://www.tullyn.com/product/festoonflex-c-pur-hf-screened-cable-0-6-1kv/

2. "ROUND LOW VOLTAGE CABLES FOR FESTOON OPERATION." Prysmian Group. https://www.prysmian.com/sites/default/files/business_markets/markets/downloads/datasheets/Festoon.pdf

3. "FESTOONFLEX C-PUR-HF 0,6/1KV." Vijselaar. https://vijselaar.nl/en/catalog/cranes-and-material-handling/festoon/festoonflex-c-pur-hf-06-1kv/

4. DIN EN 60228/IEC 60228/VDE 0295: Conductors of insulated cables.

5. IEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions.

6. IEC 60754-2: Test on gases evolved during combustion of materials from cables.
