FESTOO_PUR_1kV: Ultimate Festoon Cable for Extreme Conditions

In the demanding world of industrial operations, port facilities, and material handling systems, cable reliability isn't just a specification—it's the backbone of operational continuity. The FESTOO_PUR_1kV represents the pinnacle of festoon cable engineering, designed specifically for environments where failure simply isn't an option. This comprehensive guide explores how this advanced low voltage festoon cable delivers exceptional performance in the most challenging industrial applications through its innovative construction, superior materials, and adherence to rigorous international standards.

Introduction to FESTOO_PUR_1kV Technology

The FESTOO_PUR_1kV is an advanced low voltage festoon cable engineered specifically for critical material handling and port applications. What sets this cable apart is its unique combination of high-performance EPR insulation and robust PUR sheathing, creating a solution that thrives under extreme mechanical stress while maintaining superior environmental resistance.

Festoon systems—the cable management arrangements that support moving equipment on cranes, hoists, and material handling machinery—represent one of the most demanding applications for electrical cabling. In these systems, cables must withstand constant flexing, exposure to environmental elements, and continuous operation under varying loads. The FESTOO_PUR_1kV was developed specifically to meet these challenges head-on.

Core Construction and Technical Specifications

Conductor Design and Materials

At the heart of the FESTOO_PUR_1kV is its advanced conductor construction:

• Copper Conductors: Bare copper conductors manufactured to exacting standards

• Up to 25 mm²: Extremely finely stranded (class 6)

• Above 35 mm²: Finely stranded (class 5)

This stranding classification is crucial as it provides the flexibility needed for festoon applications while maintaining excellent electrical conductivity. The extremely fine stranding in smaller sizes ensures maximum flexibility for applications requiring frequent movement and bending.

Core Insulation Technology

The insulation system is where the FESTOO_PUR_1kV truly begins to differentiate itself:

• Material: EPR (Ethylene Propylene Rubber) with special compound 3GI3

• Design: Insulation wall thickness engineered to 1kV standards based on VDE 0250 Part 1

• Arrangement: Cores laid in parallel; configurations with more than 12 cores utilize parallel bundles

The EPR insulation provides outstanding electrical properties with exceptional resistance to thermal aging, making it ideal for applications where the cable must maintain performance integrity over extended periods in challenging environments.

Core Identification System

For ease of installation and maintenance, the FESTOO_PUR_1kV features a clear identification system:

• Up to 5 cores: Black, blue, brown, grey, green/yellow (or all black for version...-O)

• More than 5 cores: Black with white colored numbers

This identification system complies with international standards while providing clear visual differentiation for technicians working with multiple cables in complex installations.

Screening Options

For applications requiring electromagnetic interference protection, versions are available with:

• Individual Screen: Made of tinned copper braid with 60% coverage

• Total Screen Protection (TSP): 80% coverage

Superior Outer Sheath Construction

The outer sheath is the cable's first line of defense against environmental and mechanical stressors. The FESTOO_PUR_1kV features:

• Material: Chlorinated polyethylene (CM/CPE)

• Compound: Special formulation 5GM3

• Performance: Outstanding resistance to oils, UV radiation, ozone, and mechanical stress

This robust sheathing system provides exceptional protection against the most common causes of cable failure in industrial environments, including chemical exposure, abrasion, and environmental degradation.

Electrical Performance Parameters

The FESTOO_PUR_1kV delivers reliable electrical performance under demanding conditions:

• Rated voltage U₀/U (Um): 300/500 V

• Test voltage: 2.5 kV

• AC test voltage (control cores): 2 kV

• Nominal voltage U: 500 V

These ratings ensure the cable maintains signal integrity even in electrically noisy industrial environments, making it suitable for both power and control applications in a single cable solution.

Thermal Performance Range

Temperature management is critical in festoon applications, and the FESTOO_PUR_1kV excels with:

• Maximum conductor temperature: 90°C

• Maximum conductor temperature during short circuit: 250°C

• Ambient temperature range for fixed installation: -50°C to +80°C

• Ambient temperature range for flexible installation: -35°C to +80°C

This wide temperature range makes the cable suitable for both extremely cold environments (such as refrigerated warehouses or outdoor winter operations) and high-temperature industrial settings.

Environmental Resistance Properties

The FESTOO_PUR_1kV is engineered to withstand harsh environmental conditions:

• Flame retardant: Complies with EN/IEC 60332-1-2

• Oil resistant: Yes

• Ozone resistance: Yes

• UV resistance: Yes

These properties ensure the cable maintains its integrity even when exposed to industrial chemicals, direct sunlight, and other environmental stressors that would quickly degrade standard cables.

Mechanical Performance Specifications

Tensile Strength and Flexibility

• Permanent tensile strength: 15 N/mm²

• Bending radius:

• Fixed installation: 4 × cable diameter

• Flexible operation: 5 × cable diameter

These specifications ensure the cable can withstand the continuous tension and repeated bending cycles inherent in festoon systems without premature failure.

Travel Speed Capabilities

The FESTOO_PUR_1kV is rated for impressive operational speeds:

• Gantry (reeling operation): Not applicable

• Non-motorized festoon (trolley) system: Up to 160 m/min

• Motor-driven festoon (trolley) system: Up to 180 m/min

For applications requiring speeds beyond these guidelines, consultation with the manufacturer is recommended to ensure optimal performance and longevity.

Compliance with International Standards

The FESTOO_PUR_1kV is manufactured to comply with the most rigorous international standards:

• DIN VDE 0250-809: Rubber-insulated cables for power installations with special fire performance

• DIN EN 60228/IEC 60228/VDE 0295: Conductors of insulated cables

• DIN VDE 0207-20: Insulating and sheathing materials of cables

• DIN VDE 0207-21: Special materials for cable insulation and sheathing

• DIN VDE 0298-4: Use of cables and insulated conductors for power installations

• DIN EN 60811-404/IEC 60811-404: Reversed bending testing

Compliance with these standards ensures the cable meets or exceeds the performance requirements for the most demanding industrial applications.

Application Areas and Use Cases

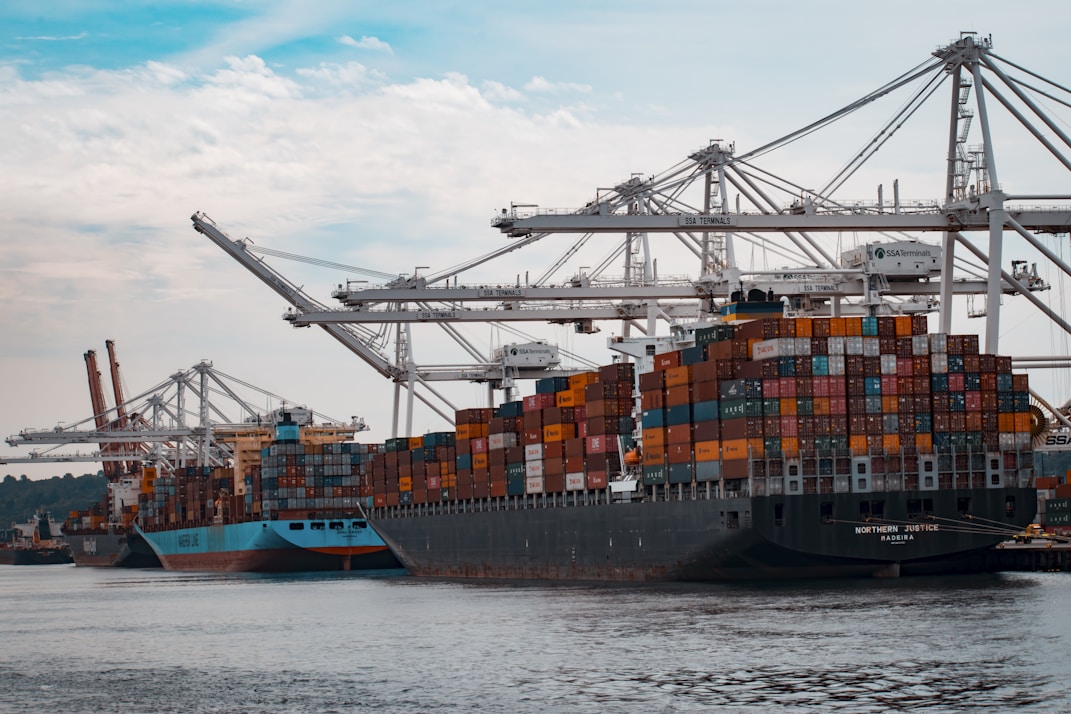

Port and Maritime Applications

The FESTOO_PUR_1kV excels in maritime environments where exposure to saltwater, UV radiation, and continuous operation are the norm:

• Container cranes: Powering and controlling the movement of ship-to-shore cranes

• Straddle carriers: Providing reliable power for container handling equipment

• Port conveyors: Ensuring continuous operation of material transfer systems

• Ship loading systems: Supporting critical loading and unloading operations

The cable's resistance to saltwater, UV radiation, and mechanical stress makes it ideal for these challenging environments.

Industrial Material Handling

In manufacturing and logistics environments, the FESTOO_PUR_1kV provides reliable service for:

• Overhead cranes: Supporting both power and control functions in a single cable

• Automated storage and retrieval systems: Ensuring reliable communication with moving components

• Conveyor systems: Providing power and control signals to motorized conveyor sections

• Transfer cars: Supporting reliable movement of materials between production areas

The cable's ability to combine power and control functions in a single installation reduces complexity and improves system reliability.

Mining and Heavy Industry

The extreme conditions in mining and heavy industry make the FESTOO_PUR_1kV particularly valuable:

• Mining equipment: Powering equipment in dusty, abrasive environments

• Steel mills: Operating reliably in high-temperature conditions

• Foundries: Withstanding exposure to heat and industrial chemicals

• Bulk material handling: Supporting the continuous movement of raw materials

The cable's temperature resistance and mechanical durability ensure reliable operation even in these extreme environments.

Installation and Maintenance Guidelines

Installation Best Practices

To maximize the performance and lifespan of FESTOO_PUR_1kV cables:

• Maintain minimum bending radius guidelines during installation (4× cable diameter for fixed installation)

• Ensure proper support at recommended intervals along festoon systems

• Verify proper trolley spacing to prevent excessive cable droop

• Install cables with natural twist direction to minimize mechanical stress

Operational Considerations

During operation, observe these guidelines:

• Maintain operational bending radius guidelines (5× cable diameter for flexible operation)

• Ensure travel speeds remain within specified limits (up to 160 m/min for non-motorized systems)

• Monitor cable condition regularly for early signs of wear or damage

• Implement a preventive maintenance schedule based on operational intensity

Troubleshooting Common Issues

When issues arise, check for:

• Visible damage to the outer sheath that might compromise environmental protection

• Signs of conductor fatigue at connection points

• Evidence of overheating due to excessive current

• Indications of mechanical stress beyond design parameters

Selecting the Right Configuration

Choosing the optimal FESTOO_PUR_1kV configuration involves considering:

Power Requirements

• Calculate maximum current requirements for all powered components

• Select conductor size with appropriate capacity plus safety margin

• Consider voltage drop over the cable length, especially for longer runs

Control Signal Needs

• Determine the number of control signals required

• Assess whether screened versions are needed for sensitive control signals

• Consider future expansion needs when selecting core count

Environmental Factors

• Evaluate exposure to chemicals, UV radiation, and mechanical abrasion

• Consider temperature extremes in the operating environment

• Assess the presence of electromagnetic interference that might require screened versions

Conclusion

The FESTOO_PUR_1kV represents the state of the art in festoon cable technology, combining advanced materials science with precision engineering to create a solution that thrives in the most demanding industrial environments. Its unique combination of high-performance EPR insulation, robust PUR sheathing, and superior environmental resistance ensures reliable operation under extreme mechanical stress.

For critical material handling and port applications where downtime is not an option, the FESTOO_PUR_1kV delivers the reliability, durability, and performance needed to keep operations running smoothly. By selecting the appropriate configuration for your specific application requirements, you can ensure optimal performance and maximize the return on your cable infrastructure investment.

References

1. DIN VDE 0250-809: Rubber-insulated cables for power installations with special fire performance

2. DIN EN 60228/IEC 60228/VDE 0295: Conductors of insulated cables

3. DIN VDE 0207-20: Insulating and sheathing materials of cables

4. DIN VDE 0207-21: Special materials for cable insulation and sheathing

5. DIN VDE 0298-4: Use of cables and insulated conductors for power installations

6. DIN EN 60811-404/IEC 60811-404: Reversed bending testing

7. Eland Cables. (n.d.). PUR-HF Low Voltage Festoon Cable. Retrieved from https://www.elandcables.com/media/xclfdohp/pur-hf-festoon-cable.pdf

8. Hisea Cable. (n.d.). PUR Sheathed Festoon Power and Control Cable. Retrieved from http://www.hiseacable.com/pur-sheathed-festoon-power-and-control-cable/
