H07VVH6-F Flat PVC Cable: Ultimate Crane & Hoist Solution

In the demanding world of industrial material handling, where reliability and performance are non-negotiable, choosing the right cabling solution can make the difference between operational excellence and costly downtime. For professionals managing traveling cranes, hoists, and complex material handling systems, the Feichun Cable H07VVH6-F 450/750V Flat PVC Cable represents a specialized solution engineered specifically to meet the unique challenges of these critical applications.

This comprehensive guide explores how this versatile flat cable delivers exceptional performance in environments where space constraints, constant movement, and mechanical stress demand superior flexibility and durability. Whether you're outfitting port terminals, shipyards, or manufacturing facilities, understanding the distinctive advantages of H07VVH6-F cabling can help optimize your operations for safety, efficiency, and longevity.

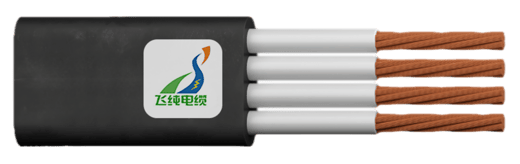

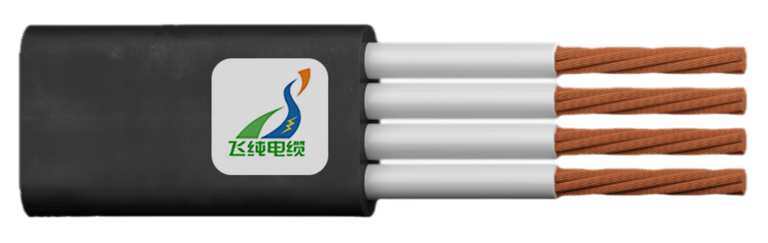

Feichun Cable H07VVH6-F 450/750V Flat PVC Cable – Flexible Power Solution for Travelling Cranes and Hoists

The industrial landscape continues to evolve, with material handling equipment becoming increasingly sophisticated and demanding more from their power delivery systems. The Feichun Cable H07VVH6-F emerges as a purpose-built response to these challenges, offering a low voltage cable solution that combines flexibility, durability, and reliability in a flat profile designed for motion-intensive applications.

This specialized cable isn't simply an adaptation of standard cabling; it's been engineered from the ground up to address the unique operational requirements of traveling cranes and hoists. The flat configuration allows for smooth movement through cable carriers and festoon systems while minimizing the risk of twisting, tangling, or excessive wear during operation.

What truly distinguishes the H07VVH6-F is its ability to maintain consistent electrical performance even when subjected to thousands of bending cycles. This characteristic is particularly crucial in environments like port terminals and shipyards, where continuous operation and reliability directly impact productivity and safety.

Engineered for High Flexibility, Reliable Performance, and Indoor Safety in Critical Material Handling Applications

The engineering principles behind the H07VVH6-F reflect a deep understanding of the operational demands placed on cabling in material handling applications. Every element of its design has been optimized to deliver exceptional performance in environments where cables are in constant motion and subject to mechanical stress.

High Flexibility and Robust Design

At the core of the H07VVH6-F's performance capabilities lies its conductor construction. The cable features flexible, bare copper conductors that are arranged in parallel groups, creating the distinctive flat profile that facilitates smooth movement through cable management systems.

For cables up to 25 mm², extremely finely stranded conductors are used, while larger sizes utilize finely stranded conductors. This graduated approach ensures optimal balance between flexibility and current-carrying capacity across the product range. The parallel arrangement of conductors also contributes to the cable's ability to bend repeatedly in a single plane without developing structural fatigue.

This design philosophy results in minimal electrical resistance and exceptional conductivity, even when the cable is subjected to frequent bending and mechanical stress. For operations where continuous movement is the norm rather than the exception, this translates to reliable power delivery and extended service life.

Premium Insulation Material

The conductor insulation in the H07VVH6-F consists of high-grade polyvinyl chloride (PVC) formulated specifically for industrial applications. This specialized PVC provides reliable dielectric strength, ensuring electrical integrity even under challenging operational conditions.

The insulation thickness has been carefully optimized in accordance with 1kV rubber insulated cable standards (VDE 0250 Part 1), providing an ideal balance between flexibility and protection. This thoughtful engineering protects the conductors against both environmental factors and mechanical hazards that are common in industrial settings.

The PVC insulation also contributes to the cable's overall performance envelope, allowing it to maintain its electrical properties across a wide temperature range while resisting common industrial contaminants that might compromise lesser cables.

Durable Outer Sheathing

Complementing the premium core insulation, the H07VVH6-F features an outer sheath also constructed from high-quality PVC. This outer layer has been formulated to provide excellent resistance to a variety of chemical exposures commonly encountered in industrial environments.

The sheathing material offers impressive oil resistance, making it suitable for applications where lubricants and hydraulic fluids are present. Additionally, its UV and ozone resistance properties make it ideal for use in harsh industrial and maritime environments where these degradation factors are common.

This robust outer layer not only protects the internal conductors but also contributes to the cable's overall mechanical performance, allowing it to withstand the abrasion and friction associated with movement through festoon systems and cable carriers.

Optimized for Festoon Applications

The H07VVH6-F has been specifically designed for festoon systems, where cables must travel along with moving equipment while maintaining electrical integrity. These applications represent some of the most demanding scenarios for industrial cabling, requiring products that can withstand continuous flexing without premature failure.

In festoon systems, the cable connects moveable parts of machine tools, material handling equipment, and similar systems where cables are subject to high mechanical stresses and frequent bending in one plane. The flat profile of the H07VVH6-F is particularly advantageous in these scenarios, as it aids in efficient cable management and significantly reduces the risk of entanglement during operation.

The cable's design allows it to move smoothly through cable carriers and festoon systems, minimizing friction and the associated wear. This characteristic is particularly valuable in high-cycle applications where traditional round cables might experience accelerated degradation due to constant movement.

Electrical and Thermal Performance

With a rating of 450/750V, the H07VVH6-F operates with a nominal voltage of 1000V, providing ample capacity for typical crane and hoist applications. Each cable undergoes rigorous testing at 2.5kV to ensure robust insulation integrity and operational safety, giving users confidence in its performance even under challenging conditions.

The cable's thermal characteristics are equally impressive, supporting continuous operation at temperatures up to 90°C and maintaining integrity during short-circuit conditions up to 250°C. This thermal resilience contributes significantly to the cable's safety profile and operational reliability.

The H07VVH6-F functions reliably across an exceptional temperature range, performing well in fixed installations from -50°C to +80°C and in flexible installations from -40°C to +80°C. This broad operational envelope makes it suitable for a wide variety of industrial environments, from refrigerated warehouses to hot manufacturing facilities.

Compliance with International Standards

Quality assurance and regulatory compliance are critical considerations for industrial cabling, particularly in applications where failure could lead to operational downtime or safety hazards. The H07VVH6-F addresses these concerns through comprehensive compliance with key international standards.

The cable is manufactured in accordance with multiple standards including:

• DIN VDE 0250-809

• DIN EN 60228/IEC 60228/VDE 0295

• DIN VDE 0207-20/21

• DIN VDE 0298-4

• DIN EN 60811-404/IEC 60811-404

Additional compliance standards include:

• EN 50214

• EN 60228

• EN 50363-3

• EN 50363-4-1

• EN 50565-1

• DIN VDE 0293-308

These certifications ensure that the cable meets stringent quality, safety, and performance criteria, providing users with confidence in its reliability and suitability for critical applications. The comprehensive certification profile also facilitates specification and approval processes in regulated industries.

Application Versatility Beyond Cranes and Hoists

While the H07VVH6-F excels in its primary application for traveling cranes and hoists, its unique performance characteristics make it equally suitable for a variety of other demanding industrial scenarios. This versatility adds significant value for operations that require consistent cabling solutions across multiple applications.

Diverse Festoon System Applications

The cable's performance in festoon systems extends beyond cranes to include applications such as:

• Drag chains for automated manufacturing equipment

• CNC machine tools with moving components

• Automated storage and retrieval systems

• Conveyor systems with moving pickup points

• Robotic manufacturing cells

In each of these applications, the H07VVH6-F's flat profile and flexibility characteristics provide the same advantages seen in crane operations: reliable performance, reduced wear, and extended service life.

Material Handling Equipment

The H07VVH6-F is particularly well-suited for various material handling systems where cables must accommodate movement while maintaining electrical integrity:

• Stacker cranes in automated warehouses

• Gantry systems for production facilities

• Transfer cars on rail systems

• Loading/unloading equipment in logistics centers

These applications benefit from the cable's ability to withstand repeated flexing cycles without developing conductor or insulation fatigue, ensuring consistent performance over extended operational periods.

Port and Maritime Applications

The cable's resistance to environmental factors makes it an excellent choice for port operations and shipbuilding activities:

• Ship-to-shore cranes

• Container handling equipment

• Shipyard material transport systems

• Dock loading equipment

In these maritime environments, the H07VVH6-F's resistance to UV exposure, ozone, and industrial chemicals provides additional protection against premature degradation, while its mechanical characteristics ensure reliable operation in motion-intensive applications.

Installation Advantages and Maintenance Considerations

The practical aspects of cable installation and maintenance significantly impact total cost of ownership and operational reliability. The H07VVH6-F offers several advantages in these areas that complement its performance characteristics.

Clear Core Identification System

The cable features a thoughtfully designed core identification system that facilitates quick and accurate installation:

• Light-colored insulation provides a clear background for markings

• Black printed numbers for power and control cores enable easy identification

• Green/yellow earth conductor adheres to international safety standards

This clear identification system reduces installation time and helps prevent connection errors that could lead to operational issues or safety hazards.

Simplified Cable Management

The flat profile of the H07VVH6-F simplifies cable management in several ways:

• Reduced tendency to twist or tangle compared to round cables

• More efficient use of space in cable carriers and trays

• Lower friction during movement through festoon systems

• Improved heat dissipation due to increased surface area

These characteristics not only facilitate installation but also contribute to reduced maintenance requirements and extended service life.

Reduced Maintenance Requirements

The H07VVH6-F's robust construction and performance characteristics translate directly to reduced maintenance needs:

• Exceptional flex life minimizes replacement frequency

• Resistance to environmental factors reduces degradation

• Durable materials withstand abrasion and mechanical stress

• Reliable electrical performance reduces troubleshooting requirements

For operations where equipment uptime is critical, these maintenance advantages can contribute significantly to overall productivity and cost-effectiveness.

Technical Specifications at a Glance

For engineering and procurement professionals, the following technical specifications provide a concise reference for the H07VVH6-F's key parameters:

• Type: H07VVH6-F 450/750V Flat PVC cable

• Description: Flat, flexible cable for general purposes and special applications in travelling cranes and hoists, indoor use

• Conductor: Flexible Copper, bare

• Core insulation: Polyvinyl chloride (PVC)

• Construction: Cores laid in parallel groups

• Outer sheath: Polyvinyl chloride (PVC)

• Rated voltage U0/U (Um): 450/750V

• Test voltage: 2.5kV

• Minimum operating temperature: -15°C

• Maximum operating temperature: 70°C

• Maximum travel speed: 1.6 m/s

These specifications should be referenced when determining suitability for specific applications, with consideration given to environmental conditions, duty cycle, and operational requirements.

Conclusion: A Specialized Solution for Demanding Applications

For industries involved in cranes, material handling, port operations, and shipbuilding, the Feichun Cable H07VVH6-F 450/750V Flat PVC Cable represents a specialized solution engineered to address the unique challenges of these demanding applications. Its combination of high flexibility, robust electrical performance, and excellent environmental resistance makes it the ideal choice for scenarios where frequent bending and mechanical stress are unavoidable operational realities.

The cable's flat profile, premium materials, and thoughtful design ensure safe and stable power delivery in critical festoon systems, contributing directly to enhanced operational efficiency and reduced maintenance costs. For operations where reliability is non-negotiable and downtime is exceptionally costly, the H07VVH6-F offers a compelling value proposition that extends well beyond its initial procurement cost.

By selecting the H07VVH6-F for appropriate applications, engineering and maintenance professionals can improve system reliability, extend service intervals, and ultimately contribute to safer, more productive industrial operations. In the demanding world of material handling equipment, this specialized cable has earned its reputation as the ultimate solution for cranes, hoists, and other motion-intensive applications.
