NTSKCGECWOEU 1,8/3KV: Essential Mining Cables Explained

Introduction

In the demanding world of underground mining, reliable power supply systems are not just a convenience—they're a necessity that impacts both operational efficiency and worker safety. Among the critical components in these systems, the Type NTSKCGECWOEU 1,8/3KV coal cutter cable stands out as an essential specialized solution. These cables serve as the lifeline for mobile equipment and machines operating in the challenging environment of underground mines, particularly coal cutting machines that form the backbone of extraction operations.

This comprehensive guide explores the technical specifications, applications, and importance of NTSKCGECWOEU 1,8/3KV coal cutter cables for chain operation. Whether you're a mining engineer, procurement specialist, or safety officer, understanding these specialized mining cables will help you make informed decisions about power infrastructure in underground mining operations.

Understanding NTSKCGECWOEU 1,8/3KV Coal Cutter Cables

What Are Coal Cutter Cables?

Coal cutter cables, specifically Type PROTOMONT (V) NTSKCGECWOEU 1,8/3KV, are specialized power supply cables engineered for the unique demands of underground mining environments. Unlike standard industrial cables, these mining cables are designed to withstand extreme mechanical stress, environmental challenges, and operational hazards inherent to mining operations.

The designation "NTSKCGECWOEU" may seem like a complex alphanumeric code, but it actually represents specific characteristics of the cable:

• N - Indicates a cable with standardized construction

• TSK - Denotes a trailing cable designed for coal mining applications

• C - Indicates copper conductor

• G - Represents rubber insulation

• E - Signifies special shielding properties

• C - Represents a concentric conductor arrangement

• WO - Indicates oil and weather resistance

• EU - European standard compliant

The "1,8/3KV" portion indicates the cable's voltage rating, with 1.8kV being the phase-to-earth voltage and 3kV being the phase-to-phase voltage.

Specialized Design for Chain Operation

What makes these coal cutter cables unique is their specific design for use in cable protection chains, also known as cable handlers. These protective systems trail behind mobile mining machinery, particularly coal cutting machines, and serve a critical purpose: they absorb the tensile forces that would otherwise stress and potentially damage the cables.

The PROTOMONT (V) NTSKCGECWOEU cables feature several design elements that make them suitable for this demanding application:

• Enhanced flexibility to accommodate the continuous movement within cable chains

• Reinforced construction to withstand repeated bending and flexing

• Special sheathing materials that resist abrasion from the chain mechanism

• Optimized diameter-to-strength ratio for efficient chain operation

Technical Specifications and Construction

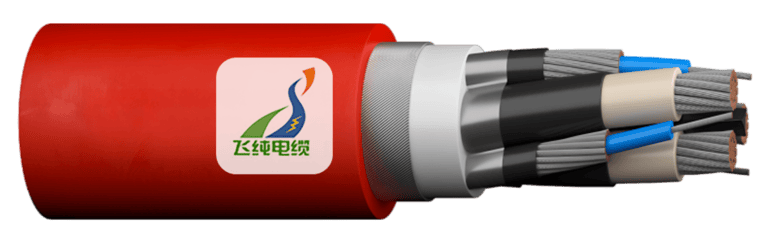

Core Construction and Materials

The Type PROTOMONT (V) NTSKCGECWOEU 1,8/3KV coal cutter cables feature a sophisticated multi-layer construction:

1. Conductor: Very finely stranded tinned copper conductors (class FS) provide excellent flexibility and conductivity, crucial for applications involving continuous movement.

2. PE Elements: Double concentric control/PE wire spinning in outer interstices ensures effective grounding and control functionality.

3. Core Insulation: EPR (Ethylene Propylene Rubber) insulation, specifically PROTOLON special compound 3GI3, provides excellent electrical insulation properties and durability.

4. Semi-conducting Layer: An outer semi-conducting NBR easy-strip layer facilitates installation and maintenance while providing electrical safety.

5. Core Configuration: Three main cores in natural color are laid up with double concentric control/PE conductor elements (blue) in the outer interstice.

6. Inner Sheath: Special EPR compound GM1b rubber provides an additional layer of protection.

7. Monitoring Conductor: A spinning of steel/Cu-tinned wires enables continuous monitoring of cable integrity.

8. Outer Sheath: PROTOFIRM polychloroprene (PCP) rubber, specifically the special compound >5GM5, offers exceptional resistance to environmental factors.

Electrical Specifications

The NTSKCGECWOEU 1,8/3KV cables are designed to operate reliably under specific electrical parameters:

• Rated Voltage U0/U (Um): 1,8/3 (3,6) kV

• Test Voltage: 6 kV

• AC Test Voltage (control cores): 2 kV

• Nominal Voltage: 3000 V

These specifications ensure the cable can safely transmit power to coal cutting machines and other mining equipment without electrical failures that could compromise operations or safety.

Thermal Performance

Underground mining environments can subject cables to significant temperature variations. The NTSKCGECWOEU cables are engineered to perform reliably across a wide thermal range:

• Maximum Conductor Temperature: 90°C during normal operation

• Short Circuit Temperature: Up to 250°C

• Ambient Temperature (Fixed Installation): -40°C to 80°C

• Ambient Temperature (Flexible Installation): -20°C to 60°C

This thermal performance ensures the cables maintain their integrity and electrical properties even under extreme temperature conditions that may occur in mining operations.

Compliance with International Standards

The Type PROTOMONT (V) NTSKCGECWOEU 1,8/3KV coal cutter cables adhere to numerous international standards, ensuring their safety, reliability, and performance:

• DIN VDE 0250-813: German standard for flexible mining cables

• DIN EN 60228/IEC 60228/VDE 0295: Standards for conductors in insulated cables

• DIN VDE 0298-4: Guidelines for current-carrying capacity

• DIN EN 60811-404/IEC 60811-404: Test methods for insulating and sheathing materials

• DIN EN 60332-1-2/IEC 60332-1-2: Standards for flame retardant properties

• GOST-R/-K/-B: Fire certification from the Russian Federation

• MSHA P-07-KA140034: Approval from the Mine Safety and Health Administration (USA)

• MA China: Certification meeting Chinese mining safety standards

This comprehensive compliance with international standards makes these mining cables suitable for global mining operations while ensuring they meet the highest safety and performance requirements.

Environmental and Mechanical Resilience

Environmental Protection Features

Underground mining presents numerous environmental challenges that standard cables cannot withstand. The NTSKCGECWOEU 1,8/3KV coal cutter cables incorporate several protective features:

• Flame Retardant: Complies with EN/IEC 60332-1-2, preventing flame propagation

• Oil Resistant: Withstands exposure to hydraulic fluids and lubricants common in mining equipment

• Ozone Resistance: Maintains integrity despite exposure to ozone, which can degrade standard rubber

• UV Resistance: Protects against ultraviolet radiation, relevant for cables that may be used in surface operations

Mechanical Performance

The mechanical demands placed on coal cutter cables are extreme. These cables must withstand:

• Torsional Stress: Up to +/- 25°/m

• Permanent Tensile Strength: 15 N/mm²

• Bending Radius: 2.3 × cable diameter at 5 N/mm² tension, and minimum 20 × cable diameter for S-type directional changes

These mechanical specifications ensure the cables can endure the constant movement, bending, and tension associated with chain operation in coal cutting applications.

Applications in Underground Mining

Power Supply for Mobile Equipment

The primary application of NTSKCGECWOEU 1,8/3KV cables is providing power to mobile equipment in underground mining operations. These include:

• Coal Cutting Machines: Providing reliable power to the primary excavation equipment

• Continuous Miners: Supporting machines that cut coal and load it in a continuous operation

• Mobile Conveyors: Powering systems that transport extracted materials

• Drilling Equipment: Supplying electricity to machines that create blast holes or roof bolting

• Auxiliary Equipment: Powering pumps, fans, and other support machinery

Chain Operation Advantages

The specific design for chain operation offers several advantages in mining applications:

1. Increased Cable Lifespan: By absorbing tensile forces through the chain mechanism, the cable experiences less direct stress, extending its operational life.

2. Enhanced Safety: Proper cable management through chain systems reduces tripping hazards and prevents cable damage that could lead to electrical failures.

3. Improved Mobility: The cable chain system allows mining equipment to move freely without cable entanglement or damage.

4. Simplified Maintenance: Organized cable routing in chain systems makes inspection and maintenance more accessible and efficient.

Available Configurations and Sizing

NTSKCGECWOEU 1,8/3KV coal cutter cables are available in various configurations to suit different equipment power requirements. Common configurations include:

• 3x25+3x(1,5STKON+16/3KON)+UELKON with cable diameter 40.1-43.1 mm

• 3x35+3x(1,5STKON+25/3KON)+UELKON with cable diameter 44.3-47.3 mm

• 3x50+3x(1,5STKON+25/3KON)+UELKON with cable diameter 49.7-52.7 mm

• 3x70+3x(1,5STKON+35/3KON)+UELKON with cable diameter 53.2-57.2 mm

• 3x95+3x(1,5STKON+50/3KON)+UELKON with cable diameter 58.6-62.6 mm

• 3x120+3x(1,5STKON+70/3KON)+UELKON with cable diameter 62.9-66.9 mm

• 3x150+3x(1,5STKON+70/3KON)+UELKON with cable diameter 69-73 mm

• 3x185+3x(1,5STKON+95/3KON)+UELKON with cable diameter 73.2-77.2 mm

• 3x240+3x(1,5STKON+120/3KON)+UELKON with cable diameter 80.7-85.7 mm

Selecting the appropriate size depends on several factors:

• Power requirements of the connected equipment

• Length of cable run

• Environmental conditions

• Mechanical stress factors

• Voltage drop considerations

• Safety factors and redundancy needs

Sourcing and Procurement Guidance

Finding Reliable Suppliers

When sourcing NTSKCGECWOEU 1,8/3KV coal cutter cables, consider these reputable manufacturers and suppliers:

1. Feichun Cables: Offers the PROTOMONT (V) NTSKCGECWOEU 1.8/3KV Coal Cutter Cables specifically engineered for reliability in demanding underground mining environments.

2. Bitner Cable Factory: Produces BiTmining® (N)TSKCGECWOEU-CH medium voltage, flexible power supply coal cutter cables for chain operation, classified according to EN 50575 Industrial standards.

3. Reps Power: Manufactures Ntskcgerloeu/Ntscgecwoeu medium voltage coal cutter cables for connecting mobile electrical equipment in underground mines, especially designed for use in bretby cable handling systems.

Quality Verification

When procuring these specialized mining cables, verify:

• Proper certification documentation for all applicable standards

• Test reports confirming electrical and mechanical performance

• Manufacturing date and batch information

• Physical inspection of cable construction and markings

• Supplier quality management system certifications

Installation and Handling Considerations

Proper installation and handling are crucial for maximizing the service life of NTSKCGECWOEU 1,8/3KV cables:

• Store cables in clean, dry environments away from direct sunlight

• Observe minimum bending radius specifications during installation

• Use appropriate cable handling equipment to prevent mechanical damage

• Install cables in properly sized and maintained cable chain systems

• Implement regular inspection and maintenance programs

• Train personnel on proper cable handling procedures

Maintenance and Troubleshooting

Regular Inspection Procedures

Implement a systematic inspection program for coal cutter cables:

• Visual examination for outer sheath damage

• Checking for unusual bending, kinking, or flattening

• Inspection of cable entry points for stress or strain

• Verification of proper chain operation and cable movement

• Testing of monitoring conductor continuity

• Regular insulation resistance measurements

Common Issues and Solutions

Several issues may arise with coal cutter cables in mining applications:

1. Outer Sheath Damage:

• Cause: Abrasion against rough surfaces or improper chain operation

• Solution: Repair with approved materials or replace cable section; adjust chain parameters

2. Conductor Breakage:

• Cause: Excessive tensile force or repeated over-bending

• Solution: Replace cable; review chain design and operation

3. Insulation Degradation:

• Cause: Chemical exposure, excessive heat, or aging

• Solution: Replace cable; improve environmental protections

4. Water Ingress:

• Cause: Sheath damage or improper termination

• Solution: Replace affected section; improve termination methods

5. Monitoring System Failure:

• Cause: Damage to monitoring conductors

• Solution: Repair or replace monitoring system; investigate cause of damage

Future Trends in Mining Cable Technology

The technology behind coal cutter cables continues to evolve, with several emerging trends:

• Enhanced Monitoring Systems: Integration of fiber optics and digital sensors for real-time condition monitoring

• Improved Materials: Development of more durable, heat-resistant, and environmentally friendly insulation and sheathing compounds

• Weight Reduction: New conductor designs that maintain performance while reducing overall cable weight

• Smart Cables: Integration of embedded sensors for predictive maintenance

• Sustainability: Eco-friendly materials and manufacturing processes to reduce environmental impact

Conclusion

The Type PROTOMONT (V) NTSKCGECWOEU 1,8/3KV coal cutter cables represent a specialized solution for the demanding power supply needs of underground mining operations. Their unique design for chain operation, robust construction, and compliance with international standards make them essential components in modern mining infrastructure.

By understanding the technical specifications, applications, and maintenance requirements of these mining cables, operators can ensure reliable power supply to critical equipment while maximizing safety and operational efficiency. As mining technology continues to advance, these specialized cables will evolve to meet new challenges, but their fundamental role in connecting mobile equipment to power sources will remain a critical aspect of underground mining operations.
