NTSKCGECWOEU 3.6/6KV: Advanced Mining Shearer Cable Explained

In the challenging world of underground mining, reliable power transmission is not just a convenience—it's a critical safety and operational necessity. The NTSKCGECWOEU 3.6/6KV Mining Shearer Cable represents the pinnacle of specialized power connection technology designed specifically for the demanding conditions found in modern mining operations. This comprehensive article explores the advanced features, technical specifications, and practical applications of this essential mining infrastructure component.

Introduction to Mining Shearer Cables

Underground mining operations rely heavily on specialized equipment that requires consistent, reliable power delivery under extreme conditions. Coal cutting machines and shearers are the workhorses of underground mining, continuously moving through difficult terrain while performing heavy-duty extraction work. These machines demand power supply solutions that can withstand constant movement, abrasion, tension, and exposure to harsh environmental factors.

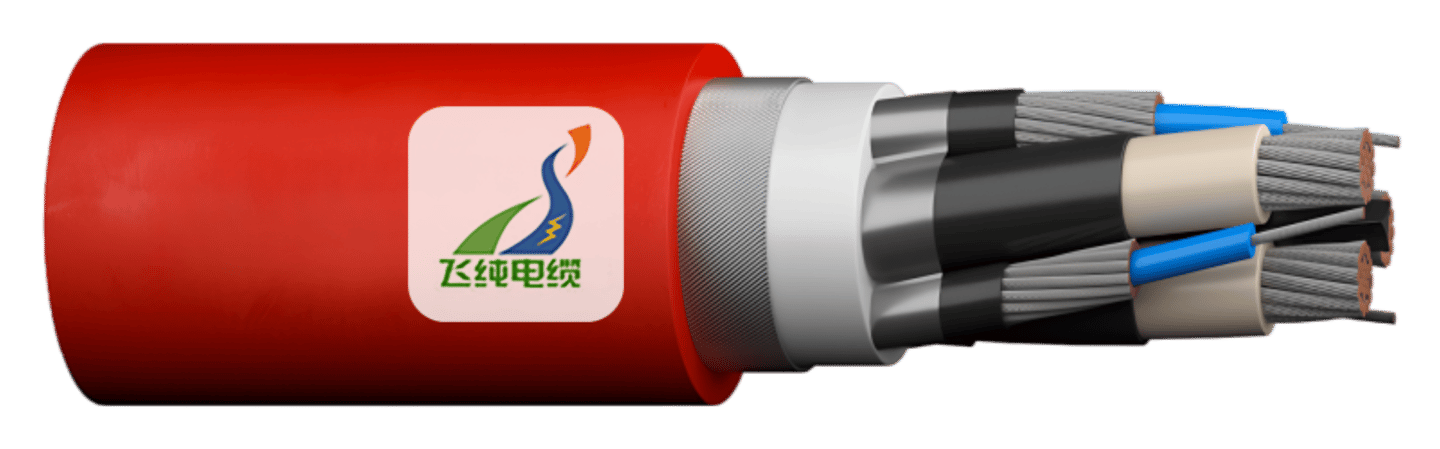

The NTSKCGECWOEU 3.6/6KV cable from Feichun Cable has been engineered as a premium solution for these challenging applications. Unlike standard industrial cables, this specialized power connection is designed to function reliably in cable protection chains (also known as cable handlers) that trail behind mining machines, constantly absorbing tensile forces while maintaining electrical integrity.

Key Technical Specifications and Design Features

Conductor Technology

The foundation of the NTSKCGECWOEU 3.6/6KV cable's performance lies in its advanced conductor design:

  • Very finely stranded, tinned copper conductors (Class FS)

  • Minimal electrical resistance for efficient power transmission

  • Enhanced conductivity crucial for maintaining operational efficiency

  • Double concentric control/PE wire spinning in outer interstices

  • Three main cores with natural color identification

  • Control cores marked in blue for easy identification during installation and maintenance

This sophisticated conductor configuration ensures optimal electrical performance while facilitating proper installation and troubleshooting in the field.

Advanced Insulation System

Power integrity in harsh mining environments depends heavily on superior insulation:

  • Core insulation constructed with EPR (Ethylene Propylene Rubber) enhanced by PROTOLON technology

  • Special compound (>3GI3) providing exceptional dielectric strength

  • Outer semi-conducting layer with semi-conductive NBR easy-strip design

  • Inner sheath made from special EPR compound (GM1b) for additional protection

  • Monitoring conductor with spinning of steel/Cu-tinned wires for integrity verification

This multi-layer insulation system creates a robust barrier against electrical faults while maintaining flexibility—a critical balance in mining applications.

Exterior Protection

The external protection system of the cable represents multiple engineering innovations:

  • Outer sheath constructed from polychloroprene (PCP) rubber (PROTOFIRM)

  • Special compound (>5GM5) formulation for enhanced durability

  • Resistance to oils, UV radiation, ozone, and seawater

  • Designed for permanent water immersion scenarios

  • Exceptional abrasion resistance for extended service life

The outer protection system effectively shields the critical internal components from the numerous physical and chemical hazards present in underground mining environments.

Performance Parameters

Electrical Performance

The NTSKCGECWOEU 3.6/6KV cable delivers reliable electrical performance under extreme conditions:

  • Rated voltage U0/U (Um): 3.6/6 (7.2) kV

  • Test voltage: 11 kV

  • AC test voltage (control cores): 2 kV

  • Nominal voltage U: 6000 V

These ratings ensure the cable can handle the power requirements of modern mining equipment while maintaining appropriate safety margins.

Thermal Performance

Mining environments often present significant thermal challenges, which this cable is designed to overcome:

  • Maximum continuous conductor temperature: 90°C

  • Maximum conductor temperature during short circuit: 250°C

  • Ambient temperature range (fixed installation): -40°C to +80°C

  • Ambient temperature range (flexible installation): -20°C to +60°C

This wide thermal operating range ensures the cable performs reliably regardless of seasonal temperature variations or localized heat sources in the mining environment.

Mechanical Performance

Perhaps the most impressive aspect of the NTSKCGECWOEU 3.6/6KV cable is its mechanical resilience:

  • Torsional stress capacity: ±25° per meter

  • Permanent tensile strength: 15 N/mm²

  • Bending radius: 2.3 X D at 5 N/mm²

  • Minimum distance with S-type directional changes: 20 X D

These mechanical specifications enable the cable to endure the continuous movement, bending, and tension experienced in cable protection chains without premature failure.

Compliance and Certification

The NTSKCGECWOEU 3.6/6KV cable meets or exceeds numerous international standards and holds important certifications:

  • DIN VDE 0250-813

  • DIN EN 60228/IEC 60228/VDE 0295

  • DIN VDE 0298-4

  • DIN EN 60332-1-2/IEC 60332-1-2

  • DIN EN 60811-404/IEC 60811-404

  • GOST -R/-K/-B Fire Certificate of Russian Federation

  • MSHA P-07-KA140034

  • WUG Poland (6kV only)

These certifications ensure the cable meets rigorous safety and performance standards required in the global mining industry, facilitating its use in international mining operations.

Practical Applications in Mining Operations

Coal Cutting Machine Power Supply

Coal cutting machines represent one of the primary applications for the NTSKCGECWOEU 3.6/6KV cable. These massive machines require substantial power for their cutting drums while constantly advancing through the mine face. The cable's ability to withstand repeated flexing, abrasion, and tension makes it ideal for this demanding application.

The cable protection chain system trails behind the cutting machine, protecting the power cable while allowing it to move with the equipment. The NTSKCGECWOEU 3.6/6KV cable's specific design accommodates this movement while maintaining electrical integrity, preventing costly downtime and dangerous power failures.

Shearer Power Distribution

Mining shearers operate in similar conditions to cutting machines but often with even greater movement ranges and operational cycles. The NTSKCGECWOEU 3.6/6KV cable's enhanced flexibility and mechanical durability make it particularly well-suited for shearer applications, where reliability directly impacts production efficiency.

The cable's resistance to oils and other mining fluids is especially valuable in shearer applications, where hydraulic systems and coal dust create a particularly challenging environment for electrical components.

Mobile Transformer and Distribution Units

Beyond direct equipment power, the NTSKCGECWOEU 3.6/6KV cable is also utilized in underground festoon systems for powering mobile transformer and shiftable distribution units. These systems require cables that can accommodate regular repositioning while maintaining electrical safety and performance.

The cable's flame-retardant properties (in accordance with EN/IEC 60332-1-2) provide an additional safety factor in these applications, reducing fire propagation risk in the confined spaces of underground mining operations.

Comparative Advantages Over Standard Mining Cables

When compared to conventional mining cables, the NTSKCGECWOEU 3.6/6KV offers several distinct advantages:

Enhanced Mechanical Durability

Standard mining cables typically offer tensile strength ratings of 10 N/mm² or less, while the NTSKCGECWOEU 3.6/6KV provides 15 N/mm². This 50% improvement in tensile strength significantly extends service life in applications involving continuous movement and tension.

Superior Environmental Resistance

While many mining cables offer basic resistance to moisture and some chemicals, the NTSKCGECWOEU 3.6/6KV provides comprehensive protection against:

  • Oil contamination

  • UV radiation

  • Ozone exposure

  • Seawater immersion

  • Extreme temperature variations

This comprehensive environmental protection package makes the cable suitable for virtually any mining environment worldwide.

Integrated Control Functionality

The inclusion of dedicated control conductors within the cable design eliminates the need for separate control cables in many applications, simplifying installation and reducing potential failure points. This integrated approach improves system reliability while potentially reducing overall infrastructure costs.

Installation and Maintenance Considerations

Proper Installation Practices

To maximize the service life and reliability of the NTSKCGECWOEU 3.6/6KV cable, proper installation is essential:

  • Maintain minimum bending radius specifications (2.3 X D at 5 N/mm²)

  • Ensure 20 X D minimum distance with S-type directional changes

  • Verify proper cable handler/protection chain configuration

  • Confirm appropriate termination methods to maintain environmental sealing

  • Test insulation integrity before commissioning

Following these installation best practices helps ensure the cable will deliver its designed performance throughout its service life.

Maintenance and Inspection Protocols

Regular inspection and maintenance of the NTSKCGECWOEU 3.6/6KV cable should include:

  • Visual inspection for outer sheath damage

  • Monitoring of operating temperatures

  • Periodic insulation resistance testing

  • Verification of proper movement within cable handlers

  • Documentation of cable age and operating history

These maintenance protocols help identify potential issues before they result in operational failures or safety hazards.

Economic Considerations and Return on Investment

While the NTSKCGECWOEU 3.6/6KV cable represents a premium power solution with corresponding initial costs, its economic value becomes apparent when considering total cost of ownership:

  • Extended service life reduces replacement frequency

  • Improved reliability minimizes costly production downtime

  • Integrated control functionality may reduce overall cable requirements

  • Enhanced safety features mitigate accident and liability risks

  • Compliance with international standards facilitates global operations

For mining operations where continuous production is critical to profitability, the reliability advantages of the NTSKCGECWOEU 3.6/6KV cable typically justify its premium positioning.

Future Developments and Innovations

The mining cable industry continues to evolve, with several emerging trends likely to influence future iterations of products like the NTSKCGECWOEU 3.6/6KV:

  • Integration of fiber optic elements for enhanced data transmission

  • Development of even more environmentally resistant compounds

  • Further improvements in flexibility and mechanical durability

  • Potential incorporation of smart monitoring capabilities

  • Continued focus on reducing cable weight while maintaining performance

These innovations will likely extend the capabilities of mining cables, further improving reliability and functionality in challenging underground environments.

Conclusion

The NTSKCGECWOEU 3.6/6KV Mining Shearer Cable represents a sophisticated engineering solution to the unique power transmission challenges present in underground mining operations. Its advanced conductor technology, superior insulation system, and robust mechanical properties combine to deliver exceptional performance in environments where reliability is paramount.

For mining operations seeking to optimize equipment uptime, enhance operational safety, and reduce long-term infrastructure costs, the NTSKCGECWOEU 3.6/6KV cable from Feichun Cable offers a compelling value proposition. As mining operations continue to push into more challenging environments and demand greater productivity from equipment, specialized power solutions like this will play an increasingly critical role in operational success.

By understanding the technical specifications, application considerations, and comparative advantages of this specialized mining cable, operations managers and engineers can make informed decisions about power infrastructure that align with both immediate operational needs and long-term strategic objectives.

References

1. DIN VDE 0250-813 Standard for Rubber Insulated Cables

2. DIN EN 60228/ IEC 60228 / VDE 0295 Standards for Conductors of Insulated Cables

3. DIN VDE 0298-4 Application of Cables and Insulated Conductors in Power Installations

4. DIN EN 60332-1-2 / IEC 60332-1-2 Tests on Electric and Optical Fibre Cables Under Fire Conditions

5. DIN EN 60811-404 / IEC 60811-404 Electric and Optical Fibre Cables - Test Methods for Non-Metallic Materials

6. GOST -R/-K/-B Fire Certificate of Russian Federation

7. MSHA P-07-KA140034 Mine Safety and Health Administration Certification

8. Feichun Cable Technical Documentation for NTSKCGECWOEU 3.6/6KV Mining Shearer Cable

9. "3.6/6kv Ntskcggecwou Ntscgewoeu Rubber Trailing Underground Mine Feeder Stacker Power Cable." Huadong Cable.

10. "Type YHKGYFtlyn 3.6/6 kV Mining Power Cable." Feichun Cables Blog.

Frequently Asked Questions (FAQ)

  • Q: What is the primary application of the NTSKCGECWOEU cable?
    A: It is engineered to supply power to mobile mining equipment, such as coal cutting machines, conveyors, stackers, and rock drilling platforms, in both open-pit and underground mining environments.

  • Q: What voltage rating does the cable have?
    A: The cable is rated at 3.6/6 kV (with an option up to 7.2 kV), making it suitable for medium voltage applications in mining operations.

  • Q: What type of conductor is used in the cable?
    A: It uses very finely stranded, tinned copper (Class FS) conductors that ensure low electrical resistance and efficient power transmission.

  • Q: What is the core insulation material?
    A: The core is insulated with EPR rubber enhanced with PROTOLON technology and a special compound (3GI3), providing superior dielectric strength and durability.

  • Q: How is the cable constructed for enhanced mechanical performance?
    A: It features three main cores with double concentric control/PE conductors in the outer interstices, designed to absorb tensile forces generated during operation.

  • Q: What is the purpose of the double concentric control/PE conductors?
    A: They enable the cable to carry both power and control signals, ensuring reliable operation of complex mining equipment.

  • Q: How does the cable handle high mechanical stresses?
    A: Its robust construction is designed to withstand frequent bending, torsional loads (up to ±25° per meter), and high tensile forces encountered in mining environments.

  • Q: What are the operating temperature ranges for this cable in fixed installations?
    A: It operates from -40°C to +80°C in fixed installations, making it suitable for extreme weather conditions.

  • Q: What is the ambient temperature range for flexible installations?
    A: In flexible applications, it functions reliably between -20°C and +60°C.

  • Q: What is the maximum continuous operating temperature of the conductors?
    A: The cable’s conductors can continuously operate at up to 90°C.

  • Q: How does the cable perform under short-circuit conditions?
    A: It can withstand short-circuit temperatures up to 250°C, ensuring safety during transient overloads.

  • Q: What kind of mechanical protection does the cable offer?
    A: The cable is integrated into cable protection chains that absorb tensile forces, preventing damage to the cable during heavy machine operation.

  • Q: How does the cable ensure low electrical losses?
    A: The use of extremely finely stranded, tinned copper minimizes resistance, reducing energy losses during power transmission.

  • Q: What is the rated nominal voltage of the cable?
    A: It is designed for a nominal voltage of 6000V, suitable for medium voltage systems in mining applications.

  • Q: What is the test voltage applied to this cable?
    A: The cable is tested at 11 kV to ensure robust insulation and reliability.

  • Q: How does the cable contribute to system reliability in mining operations?
    A: Its durable construction and high mechanical strength ensure uninterrupted power delivery even under the extreme conditions found in mining sites.

  • Q: What environmental resistances does the cable provide?
    A: The cable is oil resistant, ozone resistant, UV resistant, and has excellent seawater resistance, making it ideal for use in both underground and open-pit mines.

  • Q: Can the cable be permanently immersed in water?
    A: Yes, it is designed for permanent water immersion, which is critical in mining operations involving wet conditions.

  • Q: What certifications does the cable hold?
    A: It is certified according to DIN VDE 0250-813, DIN EN 60228/IEC 60228/VDE 0295, DIN VDE 0298-4, DIN EN 60332-1-2/IEC 60332-1-2, and DIN EN 60811-404/IEC 60811-404, along with GOST and MSHA standards.

  • Q: How does the cable handle reversed bending?
    A: Its construction is optimized to withstand reversed bending without compromising insulation or conductor integrity.

  • Q: What is the recommended bending radius for the cable?
    A: The minimum bending radius is defined as 2.3×D at a stress level of 5 N/mm², with a minimum distance of 20×D for S-type directional changes, where D is the cable diameter.

  • Q: How does the cable perform under torsional stress?
    A: The cable is designed to handle torsional stresses of ±25° per meter, ensuring performance during continuous twisting motions.

  • Q: What is the cable’s permanent tensile strength?
    A: It has a permanent tensile strength of 15 N/mm², ensuring that it maintains its integrity under high loads.

  • Q: How fast can the cable travel in chain systems?
    A: It supports travel speeds of up to 240 m/min; however, for longer chain systems, lower speeds are recommended to ensure trouble-free operation.

  • Q: How does the cable contribute to energy efficiency?
    A: Its low-resistance conductors and optimized insulation minimize power losses, contributing to greater overall energy efficiency.

  • Q: Is the cable designed for high-speed applications in mining?
    A: Yes, its robust design ensures reliable operation even at high travel speeds required by conveyor systems and mobile mining equipment.

  • Q: How does the cable handle vibration in mobile mining equipment?
    A: Its flexible construction and durable materials allow it to absorb vibrations and shocks, maintaining stable performance.

  • Q: What type of control and power signals does the cable support?
    A: It supports both power transmission and control signal integration, ensuring synchronized operation of mining machinery.

  • Q: How is the cable integrated into cable protection chains?
    A: The cable is designed to be used within cable protection chains that absorb tensile forces and protect it from mechanical damage.

  • Q: How does the cable perform in dusty and corrosive mining environments?
    A: Its robust construction and chemical-resistant sheathing ensure reliable performance even in dusty, corrosive underground mines.

  • Q: Can the cable be used with various types of mining machines?
    A: Yes, it is versatile and can be used in a range of equipment, including coal cutters, conveyors, stackers, and drilling platforms.

  • Q: What maintenance practices are recommended for this cable?
    A: Regular visual inspections, adherence to recommended bending radii, and periodic electrical testing are essential to ensure long-term reliability.

  • Q: How does the cable minimize downtime in mining operations?
    A: Its robust design, coupled with high mechanical durability and excellent environmental resistance, reduces maintenance frequency and prolongs service life, thereby minimizing downtime.

  • Q: How does the cable ensure operational safety in high-risk mining environments?
    A: Its compliance with international safety standards and certifications, along with its flame retardant and halogen-free construction, ensures safe operation even in hazardous conditions.

  • Q: Why should mining professionals choose the NTSKCGECWOEU cable for their applications?
    A: Its combination of advanced conductor technology, superior insulation, robust mechanical strength, and exceptional environmental resistance makes it the optimal solution for ensuring reliable power delivery in both open-pit and underground mining operations, thereby supporting efficient and safe mining activities.

gray and brown concrete building under blue sky during daytime
gray and brown concrete building under blue sky during daytime
white and black airplane on brown sand during daytime
white and black airplane on brown sand during daytime

NTSKCGECWOEU 3.6/6KV: Advanced Mining Shearer Cable Explained

Discover Feichun Cable's high-performance 3.6/6KV mining shearer cable engineered for uninterrupted power in harsh underground environments. Built for reliability in demanding mining operations.

3/5/202511 min read
