SPREADERFLEX REEL XPRT (N)SHTOEU 0.6/1K – Ultimate Low Voltage Vertical Reeling Cable for Spreader Basket Systems
Designed for Extreme Mechanical Durability and Efficient Vertical Reeling in Harsh Port and Shipyard Environments with Superior EMI Shielding and Environmental Resistance
SPREADERFLEX REEL XPRT (N)SHTOEU 0,6/1K is a flexible low voltage reeling cable specifically engineered for vertical reeling applications in spreader basket and reel systems.
Designed to endure extreme mechanical stresses—including high-speed vertical reeling, repeated bending, torsional loads, and roller churning—this cable is ideal for use in demanding environments such as port operations, shipyards, and heavy material handling.

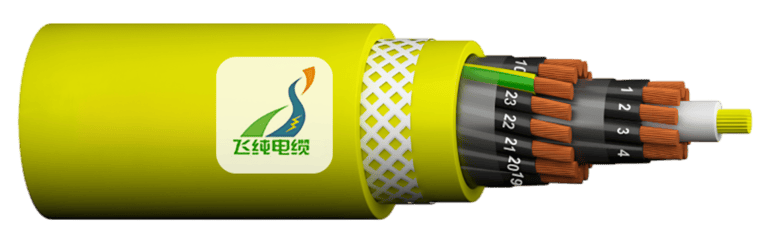

Key Construction Features
Robust Conductor: Crafted with very finely stranded, tinned copper (Class FS), the conductor offers exceptionally low resistance and high conductivity for efficient power transmission.
Advanced Core Insulation: The core is insulated with ethylene tetrafluoroethylene (ETFE), laid up in a maximum of three layers, and supported centrally by an aramid support element. This construction significantly increases the cable’s permissible tensile force.
Screening and Control: An individual screen made of tinned copper braid provides 60% coverage (with TSP 80%), ensuring that the control cores maintain low electromagnetic interference (EMI) and reliable signal integrity.
Protective Sheathing: The cable is encased in an inner sheath of polychloroprene (PCP) rubber (PROTOFIRM with a special compound >5GM5) and further protected by an outer sheath of the same high-grade material. This dual-layered sheath guarantees outstanding resistance to oil, UV radiation, ozone, and seawater, making it ideal for marine and industrial applications.
Electrical and Mechanical Performance
Low Voltage Operation: Rated at 0.6/1K (with a maximum of 1.2KV) and a nominal voltage of 1000V, this cable delivers stable and efficient power in low voltage systems.
High Test Voltage: It is rigorously tested at 3.5KV, ensuring robust insulation and high safety margins during operation.
Temperature Tolerance: The cable supports a maximum conductor temperature of 90°C and can withstand short-circuit conditions up to 250°C. Its ambient operating range is -50°C to 80°C for fixed installations and -35°C to 80°C for flexible applications.
Torsional and Tensile Strength: Engineered to resist torsional stresses of ±50° per meter, the cable also offers a static tensile strength of 20 N/mm² and a dynamic tensile strength of 25 N/mm².
Bending Specifications: In accordance with VDE 0298-3, the recommended bending radius is 4×D for fixed installations, 5×D for flexible operations, and a minimum of 20×D for S-type directional changes, where D represents the cable diameter.
Integrated Fibre-Optic Capabilities
For applications requiring simultaneous data communication, the cable includes an integrated fiber-optic element. This element features six optical tubes, each capable of accommodating one to four optical fibers. Supported fiber types include G62.5/125 µm multi-mode graded index, G50/125 µm multi-mode graded index, and E9/125 µm single-mode graded index.
These options deliver low attenuation and high bandwidth (e.g., >400 MHz at 850nm), enabling real-time monitoring and automated control within sophisticated reeling systems.
Compliance and Certification
The cable is manufactured in accordance with DIN VDE 0250-814, VDE Reg. Nr. 7519, DIN VDE 0298-3, DIN VDE 0207-20, DIN VDE 0298-4, DIN EN 60811-404/IEC 60811-404, and DIN EN 60332-1-2 standards. This ensures high electrical safety, durability, and flame retardancy, making it suitable for critical applications in port, shipbuilding, and industrial material handling.
Ideal Applications
The SPREADERFLEX REEL XPRT (N)SHTOEU 0,6/1K cable is optimized for vertical reeling in spreader basket systems. Its robust design makes it particularly well-suited for:
E-RTG Cranes: Ensuring reliable power delivery in electrified rubber tyred gantry cranes used in container terminals.
Port and Shipyard Systems: Providing stable power for shore connections and onboard installations in harsh marine environments.
Vertical Reeling Operations: Delivering high performance in systems where vertical reeling is critical, ensuring efficient operation under extreme mechanical stresses.
Conclusion
The SPREADERFLEX REEL XPRT (N)SHTOEU 0,6/1K Low Voltage Cable is a highly engineered, robust solution for vertical reeling applications in the most demanding maritime and industrial environments. With its advanced conductor technology, superior insulation and sheathing, and integrated fiber-optic capabilities, it delivers uncompromised performance and reliability.
Ideal for powering E-RTG cranes, it ensures continuous, efficient operation even under extreme mechanical and environmental conditions.
Frequently Asked Questions (FAQ)
Q: What is the primary function of the SPREADERFLEX REEL XPRT (N)SHTOEU cable?
A: It is engineered to provide reliable low voltage power for vertical reeling applications, specifically in spreader basket systems used on cranes and material handling equipment.
Q: For which industries is this cable best suited?
A: It is ideal for port operations, shipyards, and heavy material handling, particularly for E-RTG cranes and similar systems that operate under extreme mechanical conditions.
Q: What voltage does this cable operate at?
A: The cable is rated at 0.6/1KV (with a maximum of 1.2KV), making it suitable for low voltage applications in maritime and industrial settings.
Q: How does the cable’s design support vertical reeling operations?
A: It is specifically engineered for vertical reeling with optimized bending characteristics and reinforced construction to handle repeated vertical motion.
Q: What type of conductor is used in this cable?
A: The cable uses very finely stranded, tinned copper (Class FS), ensuring low electrical resistance and superior conductivity.
Q: What material is used for the core insulation?
A: The core insulation is made from ethylene tetrafluoroethylene (ETFE), providing excellent dielectric strength and durability under harsh conditions.
Q: How is the cable mechanically supported?
A: It features a central aramid support element that increases the maximum permissible tensile force, ensuring robust performance during reeling.
Q: Does the cable include any screening for EMI reduction?
A: Yes, an individual screen made of tinned copper braid (with 60% individual coverage and 80% TSP) is used to minimize electromagnetic interference (EMI).
Q: What are the primary materials used in the inner sheath?
A: The inner sheath is made of rubber - polychloroprene (PCP) (PROTOFIRM with a special compound >5GM5), which offers excellent mechanical and chemical resistance.
Q: What material forms the outer sheath?
A: The outer sheath is also made of high-grade polychloroprene (PCP) (PROTOFIRM), ensuring superior protection against environmental degradation.
Q: How does the cable withstand oil exposure?
A: Its PCP outer sheath is oil resistant, protecting the cable from chemicals and lubricants typically found in industrial environments.
Q: Is the cable UV resistant?
A: Yes, the outer sheath is UV resistant, ensuring long-term durability in outdoor port and shipyard applications.
Q: How does the cable perform in seawater?
A: It is engineered with excellent seawater resistance, making it suitable for continuous exposure in marine environments.
Q: What is the cable’s rated test voltage?
A: The cable is tested at 3.5KV to ensure robust insulation and reliable performance under operational stress.
Q: What is the nominal voltage of the cable in volts?
A: The cable is designed for a nominal voltage of 1000V.
Q: What are the ambient temperature limits for fixed installations?
A: It can operate in fixed installations between -50°C and +80°C.
Q: What ambient temperature range is supported for flexible installations?
A: For flexible applications, the cable works reliably from -35°C to +80°C.
Q: What is the maximum continuous conductor temperature?
A: The conductors can continuously operate at 90°C.
Q: What is the maximum short-circuit temperature?
A: The cable can withstand short-circuit conditions up to 250°C.
Q: How does the cable perform under torsional stress?
A: It is designed to handle torsional stresses of ±50° per meter, critical for dynamic vertical reeling operations.
Q: What are the cable’s static and dynamic tensile strengths?
A: It offers a static tensile strength of 20 N/mm² and a dynamic tensile strength of 25 N/mm², ensuring durability during high mechanical loads.
Q: What is the recommended bending radius for fixed installations?
A: The cable should be installed with a bending radius of 4×D (where D is the cable diameter) in fixed setups.
Q: What is the recommended bending radius for flexible installations?
A: For flexible operations, a minimum bending radius of 5×D is recommended.
Q: What bending radius is advised for S-type directional changes?
A: A minimum of 20×D is required to prevent mechanical damage during S-type reeling changes.
Q: How does the cable’s design contribute to low electromagnetic interference (EMI)?
A: The symmetrical three-core design and tight manufacturing tolerances ensure extremely low EMI, enhancing signal integrity.
Q: What standards does this cable comply with?
A: It is based on DIN VDE 0250-814, VDE Reg. Nr. 7519, DIN VDE 0298-3, DIN VDE 0207-20, DIN VDE 0298-4, DIN EN 60811-404/IEC 60811-404, and DIN EN 60332-1-2 standards.
Q: How does the cable facilitate integrated fiber-optic communication?
A: It features an optional integrated optical element with six optical tubes, allowing for high-speed data transmission along with power delivery.
Q: What types of fibers are supported by the integrated optical element?
A: It supports G62.5/125 µm multi-mode graded index, G50/125 µm multi-mode graded index, and E9/125 µm single-mode graded index fibers.
Q: What are the fiber’s attenuation characteristics?
A: The fibers exhibit attenuation of <3.3 dB/km at 850nm, <0.9 dB/km at 1310nm, and <0.3 dB/km at 1550nm, ensuring efficient data transmission.
Q: What is the fiber’s bandwidth at 850nm?
A: The bandwidth is greater than 400 MHz at 850nm.
Q: How does the cable help reduce energy losses?
A: Its use of very finely stranded, tinned copper minimizes electrical resistance, thereby reducing energy losses during operation.
Q: What makes this cable suitable for vertical reeling applications?
A: Its design is optimized for vertical reeling, making it ideal for spreader basket systems where the cable undergoes intense vertical motion.
Q: How does the cable adapt to the challenging conditions of port operations?
A: With its robust construction, oil and seawater resistance, and integrated EMI shielding, the cable is designed to maintain performance in the demanding environments of ports and shipyards.
Q: Can this cable be used in shipbuilding environments?
A: Yes, its excellent environmental resistance and mechanical durability make it ideal for use in shipyards, where cables are exposed to aggressive conditions.
Q: What overall advantages does the SPREADERFLEX REEL XPRT (N)SHTOEU 0,6/1K cable provide for industrial applications?
A: It delivers uncompromised low voltage power, integrated fiber-optic data communication, and superior mechanical resilience under extreme conditions, making it the optimal choice for vertical reeling applications in demanding port, shipbuilding, and material handling operations.
