Type 3PNCT Reeling Rubber Cable 6600V (6.6kV) Class 3: The Essential Guide to Industrial Power Transmission

Introduction

In the demanding world of industrial operations, reliable power transmission under dynamic conditions is not just a convenience—it's a necessity. The Type 3PNCT Reeling Rubber Cable represents an advanced engineering solution for these challenging environments, specifically designed to maintain electrical integrity while enduring constant movement, tension, and environmental stressors. This high-voltage cable, operating at 6600V (6.6kV), serves as the lifeline for critical equipment in industries where power interruption is simply not an option.

Industrial applications requiring flexible power delivery solutions have long faced the challenge of balancing electrical performance with mechanical durability. Whether in shipyards, manufacturing plants, or mining operations, environments that combine mechanical stress, movement, and exposure to harsh conditions demand specialized cable solutions. The 3PNCT cable emerges as a purpose-built answer to these challenges, embodying decades of material science advancement and engineering expertise.

Compliance Standards

JIS C 4353 Standard

The 3PNCT cable's design and manufacturing processes adhere strictly to the Japanese Industrial Standard JIS C 4353, which establishes comprehensive requirements for rubber-insulated flexible power cables used in demanding applications. This standard specifies exacting parameters for electrical performance, mechanical properties, and durability testing, ensuring that cables meeting this specification can withstand the rigors of industrial use. The JIS C 4353 standard particularly emphasizes the cable's ability to maintain integrity during repeated flexing, coiling, and uncoiling operations—precisely the conditions encountered in reeling applications.

Additional Certifications

Beyond the foundational JIS C 4353 standard, quality 3PNCT cables typically comply with additional international and regional certifications. These may include IEC standards for electrical safety, UL listings for fire resistance properties, and industry-specific certifications for specialized applications such as marine environments or mining operations. Together, these certifications create a comprehensive framework of quality assurance, giving users confidence in the cable's performance and safety characteristics across diverse operating conditions.

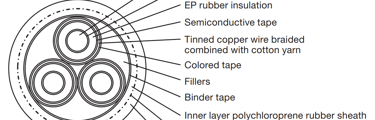

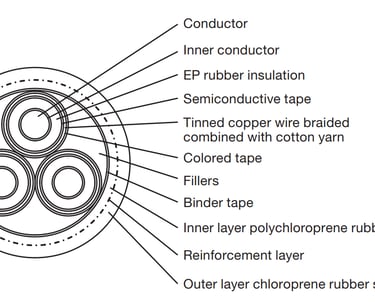

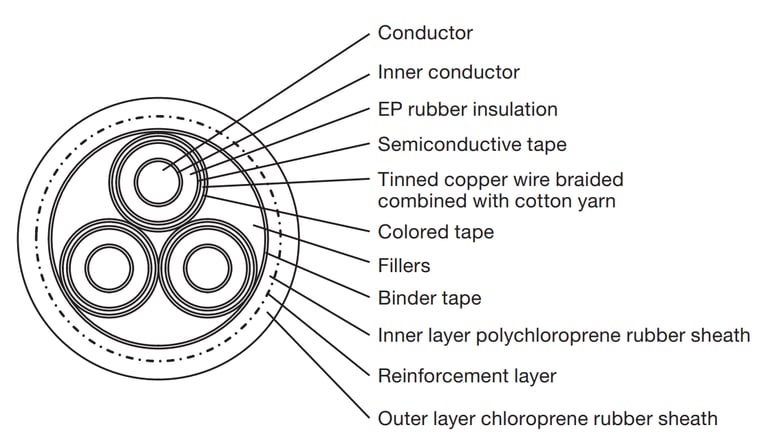

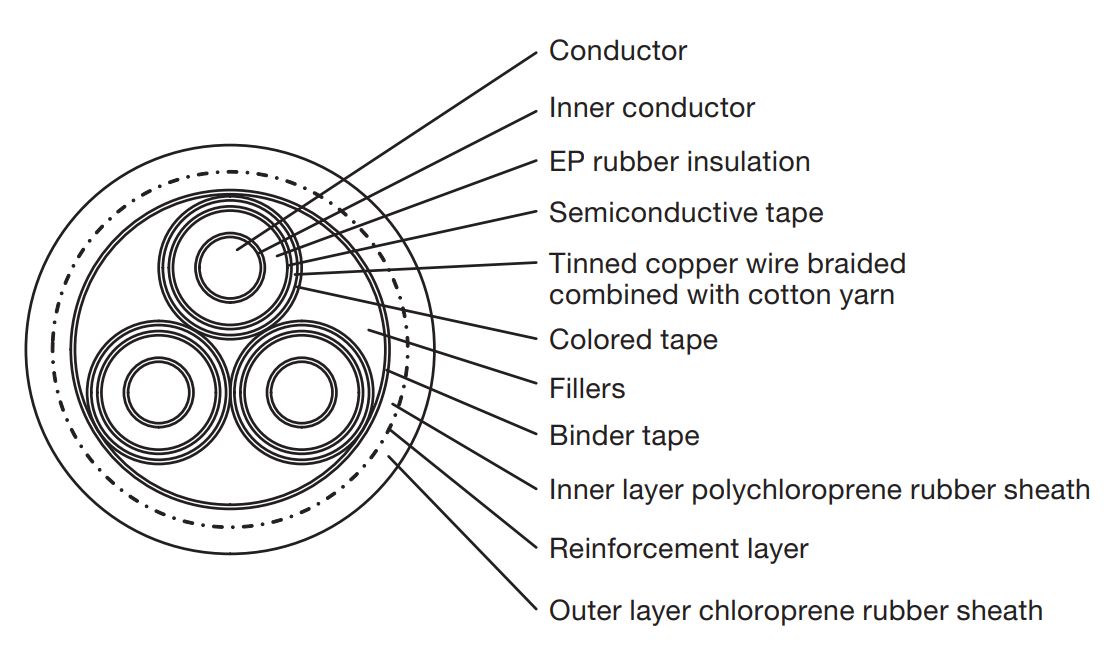

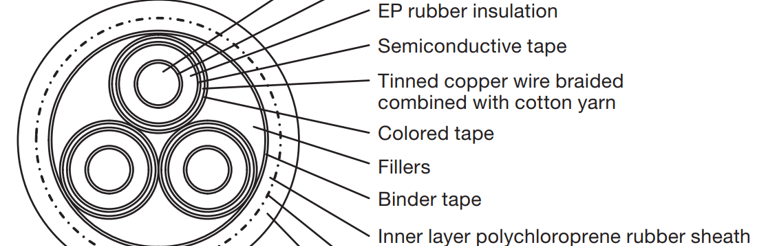

Detailed Construction and Materials

The exceptional performance of 3PNCT reeling rubber cables stems from their sophisticated construction and carefully selected materials. Each component serves specific functions that, together, create a cable capable of withstanding significant electrical, mechanical, and environmental stresses.

Conductor

At the core of the 3PNCT cable lies a tin-coated annealed copper strand wire conductor. This construction choice offers several advantages: the annealing process renders the copper exceptionally flexible, allowing it to withstand repeated bending without fatigue failure. The tin coating provides crucial protection against corrosion, particularly important in humid or chemically aggressive environments. The stranded configuration, featuring multiple fine copper wires rather than a solid core, dramatically enhances flexibility and resistance to breakage under repeated flexing—a critical consideration for reeling applications where the cable must routinely wind and unwind without degradation.

Insulation

Surrounding each conductor is a layer of ethylene propylene rubber (EP rubber), a specialized elastomer chosen for its outstanding electrical insulation properties at high voltages. EP rubber maintains its integrity across a wide temperature range, resisting both thermal aging and electrical stress. Unlike some alternative insulation materials, EP rubber retains flexibility even at lower temperatures, preventing cracking during cold-weather operation. Its exceptional dielectric strength ensures reliable insulation at the 6600V rating, while its inherent resistance to ozone degradation extends service life in applications where electrical equipment may generate this reactive gas.

Shielding

To control electromagnetic interference and provide additional protection, 3PNCT cables incorporate a sophisticated shielding system. Tinned copper wire braided shielding, often reinforced with cotton yarn, creates a conductive barrier that contains the electromagnetic field generated by the current-carrying conductors. This shielding serves two critical functions: it prevents electromagnetic interference with nearby sensitive equipment and provides a path to ground for fault currents in case of insulation failure. The cotton yarn reinforcement adds mechanical strength to the shield layer, helping to maintain shield integrity during bending and flexing operations.

Sheath

The outermost layer of the cable consists of polychloroprene rubber, commonly known as neoprene. This robust elastomer serves as the cable's first line of defense against external hazards. Neoprene delivers an impressive combination of resistances: it withstands exposure to oils and many industrial chemicals, resists abrasion from contact with rough surfaces, endures weathering and UV exposure during outdoor use, and offers inherent flame-retardant properties for enhanced safety. The sheath's flexibility complements the overall cable design, allowing free movement without cracking or tearing even after years of service in demanding conditions.

Wire Core Identification

To facilitate proper installation and troubleshooting, 3PNCT cables employ a standardized color-coding system for the three power cores: White, Red, and Blue. This clear visual differentiation enables technicians to quickly identify specific conductors without the need for electrical testing, streamlining both initial installation and subsequent maintenance operations. Proper core identification is particularly important in high-voltage applications, where incorrect connections could lead to serious safety hazards or equipment damage.

Key Features and Benefits

High Voltage Capacity

With a rated voltage of 6600V (6.6kV), 3PNCT cables meet the demands of medium-voltage industrial applications. This voltage rating supports power delivery to substantial equipment requiring higher operating voltages, such as large electric motors, pumps, and industrial machinery. The cable's robust insulation system maintains electrical integrity even under electrical stress, temperature fluctuations, and mechanical movement—conditions that would compromise lesser cables.

Mechanical Strength

Perhaps the most distinguishing characteristic of 3PNCT reeling cables is their exceptional mechanical durability. Engineered specifically for applications involving continuous movement, these cables withstand tensile forces during spooling operations, repetitive bending as they transition from straight runs to curved paths around reels, and impact forces when deployed in industrial environments. This mechanical resilience stems from both material selection and construction techniques, with each layer of the cable designed to work in harmony with adjacent layers during movement.

Thermal Performance

Industrial environments often subject cables to temperature extremes, from freezing conditions in outdoor installations to elevated temperatures near operating machinery. 3PNCT cables typically maintain performance across a wide temperature range, with many specifications allowing operation from -25°C to +90°C. This thermal resilience ensures reliable power transmission regardless of seasonal temperature variations or proximity to heat-generating equipment, providing operational flexibility across diverse industrial settings.

Chemical and Environmental Resistance

The polychloroprene outer sheath provides excellent protection against environmental factors that would rapidly degrade standard cable materials. Its resistance to oils prevents softening and deterioration when exposed to industrial lubricants or hydraulic fluids. Resistance to UV radiation and moisture prevents weather-related aging during outdoor use. The material's resistance to many industrial chemicals further extends the cable's service life in environments where chemical exposure is unavoidable, such as in manufacturing facilities or processing plants.

Typical Applications

Reeling Systems

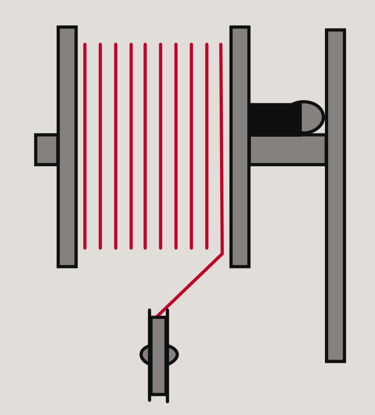

The defining application for 3PNCT cables is in reeling systems, where cables must routinely wind and unwind while maintaining electrical continuity. Shipyard cranes, overhead gantry systems, and mobile mining equipment all rely on reeling cables to deliver power to moving components. In these applications, the cable must withstand not only the mechanical stress of repeated spooling but also the torsional forces created as the cable twists during operation. 3PNCT's construction specifically addresses these challenges, providing reliable service even after thousands of reeling cycles.

Industrial Machinery

Beyond dedicated reeling systems, 3PNCT cables serve in various industrial machinery applications where equipment movement necessitates flexible power connections. Examples include track-mounted machinery that moves along production lines, articulating robotic arms in manufacturing cells, and portable industrial equipment that requires frequent repositioning. In these contexts, the cable's combination of voltage capacity, flexibility, and durability outperforms rigid power distribution methods, enabling equipment mobility without sacrificing electrical performance.

Power Supply Circuits

3PNCT cables excel in temporary or semi-permanent power supply applications, particularly for portable electrical machinery and apparatus. Construction sites, temporary manufacturing setups, and emergency power systems benefit from the cable's robust design, which resists damage from rough handling and challenging environmental conditions. The ability to coil and store the cable between uses further enhances its utility in these applications, allowing for efficient deployment and retrieval as needed.

Installation Guidelines

Preparation

Proper installation begins with thorough cable inspection. Before deployment, technicians should examine the entire cable length for any signs of shipping damage, such as cuts, abrasions, or crushing. The cable ends warrant particular attention, as damage to terminations could compromise electrical integrity. Additionally, verification of the cable's voltage rating against the intended application ensures safety and compliance with electrical codes. This preparatory inspection, while sometimes overlooked, can prevent costly failures and downtime after installation.

Installation Practices

During installation, adherence to the manufacturer's specified minimum bending radius is crucial. Exceeding this limit by bending the cable too tightly creates stress that can damage internal components and lead to premature failure. Typical minimum bending radii for 3PNCT cables range from 6 to 12 times the cable diameter, depending on specific construction details.

Proper support and tension control also significantly impact cable longevity. Installation should include appropriate cable management systems that prevent excessive tension during operation while allowing free movement where required. For reeling applications, careful adjustment of take-up mechanisms prevents both excessive tension and problematic slack, creating optimal conditions for long-term reliability.

Safety Considerations

Installation of high-voltage cables demands strict adherence to safety protocols. All work should comply with relevant electrical codes and standards, including proper lockout/tagout procedures before handling cables connected to power sources. Terminations require particular attention, with proper stress control techniques and appropriate connectors rated for the 6600V operating voltage. Grounding of cable shields according to system requirements ensures both proper operation and safety during fault conditions, protecting both equipment and personnel.

Maintenance and Inspection

Regular Inspections

A proactive inspection program significantly extends cable service life. Visual inspections should occur on a scheduled basis, with frequency determined by usage patterns and environmental conditions. Key inspection points include examination of the outer sheath for cuts, abrasions, or chemical damage; checking for deformation that might indicate internal damage; and inspection of terminations for signs of overheating or corrosion. For reeling applications, observation during operation can reveal issues such as improper tracking or binding that could lead to mechanical damage.

Preventive Maintenance

Beyond inspections, several preventive maintenance practices contribute to extended cable life. Proper storage of unused cables prevents unnecessary environmental exposure and mechanical stress. Periodic cleaning removes accumulated contaminants that could degrade the outer sheath. In reeling systems, regular maintenance of guide systems and tensioning mechanisms prevents abnormal stresses on the cable. Documentation of inspection results and maintenance activities creates a history that can help identify developing issues before they result in failure.

Troubleshooting

Despite best practices, issues may occasionally arise. Common problems include insulation degradation from excessive heat, mechanical damage from improper handling, and termination failures from improper installation or environmental exposure. Diagnostic approaches range from visual inspection to sophisticated testing methods, including insulation resistance measurement and partial discharge testing for high-voltage cables. Early detection of developing problems allows for planned intervention before catastrophic failure occurs, minimizing downtime and repair costs.

Comparison with Alternative Cables

3PNCT vs. Other Rubber Cables

While various rubber-insulated cables exist for flexible applications, 3PNCT cables offer distinct advantages for high-voltage reeling applications. Compared to standard rubber cables, they feature enhanced mechanical reinforcement to withstand repeated flexing cycles. Their specialized construction, particularly the combination of EP rubber insulation and neoprene sheathing, provides superior electrical performance and environmental resistance compared to general-purpose rubber cables. Additionally, their design specifically addresses the stress profiles encountered in reeling applications, where cables experience both bending and tensile forces simultaneously.

Advantages Over PVC-Insulated Cables

Compared to PVC-insulated alternatives, 3PNCT cables offer several significant benefits. Their flexibility remains consistent across a wider temperature range, with rubber compounds maintaining pliability at temperatures where PVC becomes brittle and prone to cracking. The rubber construction provides superior resistance to repeated flexing, outperforming PVC in applications involving continuous movement. Additionally, the neoprene sheath typically offers better resistance to oils and many chemicals than standard PVC formulations, providing longer service life in contaminated environments.

Conclusion

Summary of Benefits

Type 3PNCT Reeling Rubber Cable represents a specialized solution for demanding industrial power transmission applications, particularly those involving movement and mechanical stress. Its sophisticated construction, featuring tin-coated copper conductors, EP rubber insulation, comprehensive shielding, and neoprene outer sheath, creates a cable capable of reliable performance in challenging conditions. The 6600V rating supports substantial power delivery to medium-voltage equipment, while the mechanical design ensures integrity during repeated reeling operations. Resistance to environmental factors, including chemicals, UV radiation, and temperature extremes, further enhances its utility across diverse industrial settings.

Final Recommendations

For engineers and facility managers facing the challenge of power delivery in dynamic industrial applications, Type 3PNCT Reeling Rubber Cable offers a compelling solution. When selecting cables for these demanding scenarios, consideration of the complete operating environment—including mechanical stresses, environmental exposures, and electrical requirements—reveals the value of specialized cables designed specifically for these conditions. While potentially representing a higher initial investment than general-purpose cables, 3PNCT cables typically deliver superior long-term value through extended service life, reduced maintenance requirements, and prevention of costly downtime due to cable failures. In critical applications where reliability is paramount, the proven performance of 3PNCT cables makes them the preferred choice for discerning industrial users.

Frequently Asked Questions (FAQ)

1. What is the Type 3PNCT Reeling Rubber Cable 6600V (6.6kV) Class 3?

The Type 3PNCT Reeling Rubber Cable 6600V (6.6kV) Class 3 is a high-voltage flexible cable designed for dynamic industrial applications. It features ethylene propylene rubber (EP rubber) insulation and a polychloroprene rubber sheath, providing excellent electrical performance and mechanical durability.

2. What are the key components of this cable?

• Conductor: Tin-coated annealed copper strand wire

• Insulation: Ethylene propylene rubber (EP rubber)

• Shielding: Tinned copper wire braided combined with cotton yarn

• Sheath: Polychloroprene

3. What standards does the 3PNCT cable comply with?

It complies with the Japanese Industrial Standard JIS C 4353, which specifies requirements for rubber-insulated flexible cables used in reeling systems and other demanding applications.

4. What is the voltage rating of this cable?

The cable is rated for 6600V (6.6kV), suitable for medium-voltage power transmission in industrial settings.

5. What are the typical applications of the 3PNCT cable?

It's commonly used in reeling systems, shipyard cranes, overhead gantry systems, mobile mining equipment, and other industrial machinery requiring flexible power delivery.

6. How does the EP rubber insulation benefit the cable?

EP rubber offers excellent electrical insulation properties, thermal stability, and flexibility, making it ideal for high-voltage applications where the cable undergoes constant movement.

7. Why is polychloroprene rubber used for the sheath?

Polychloroprene rubber provides resistance to oils, chemicals, abrasion, weathering, and UV exposure, enhancing the cable's durability in harsh environments.

8. What is the purpose of the tinned copper wire braided shielding?

The shielding minimizes electromagnetic interference (EMI) and provides a path to ground for fault currents, enhancing safety and signal integrity.

9. How are the wire cores identified?

In a 3-core configuration, the wire cores are color-coded as white, red, and blue for easy identification during installation and maintenance.

10. What is the minimum bending radius for this cable?

The minimum bending radius is typically 7.5 times the cable's overall diameter, ensuring flexibility without compromising structural integrity.

11. What temperature range can the cable operate within?

The cable is designed to operate within a temperature range of -25°C to +90°C, accommodating various industrial environments.

12. Is the cable resistant to chemicals and oils?

Yes, the polychloroprene sheath provides excellent resistance to a wide range of chemicals and oils commonly found in industrial settings.

13. Can this cable be used outdoors?

Yes, its construction offers resistance to UV radiation and weathering, making it suitable for outdoor applications.

14. What is the significance of Class 3 in this cable?

Class 3 indicates the cable's classification under JIS standards, denoting its suitability for heavy-duty applications requiring high flexibility and durability.

15. How does the cable handle mechanical stress?

Its robust construction, including reinforced insulation and sheath materials, allows it to withstand mechanical stresses such as tension, bending, and impact.

16. Is the cable flame-retardant?

Yes, the polychloroprene sheath possesses inherent flame-retardant properties, enhancing safety in fire-prone environments.

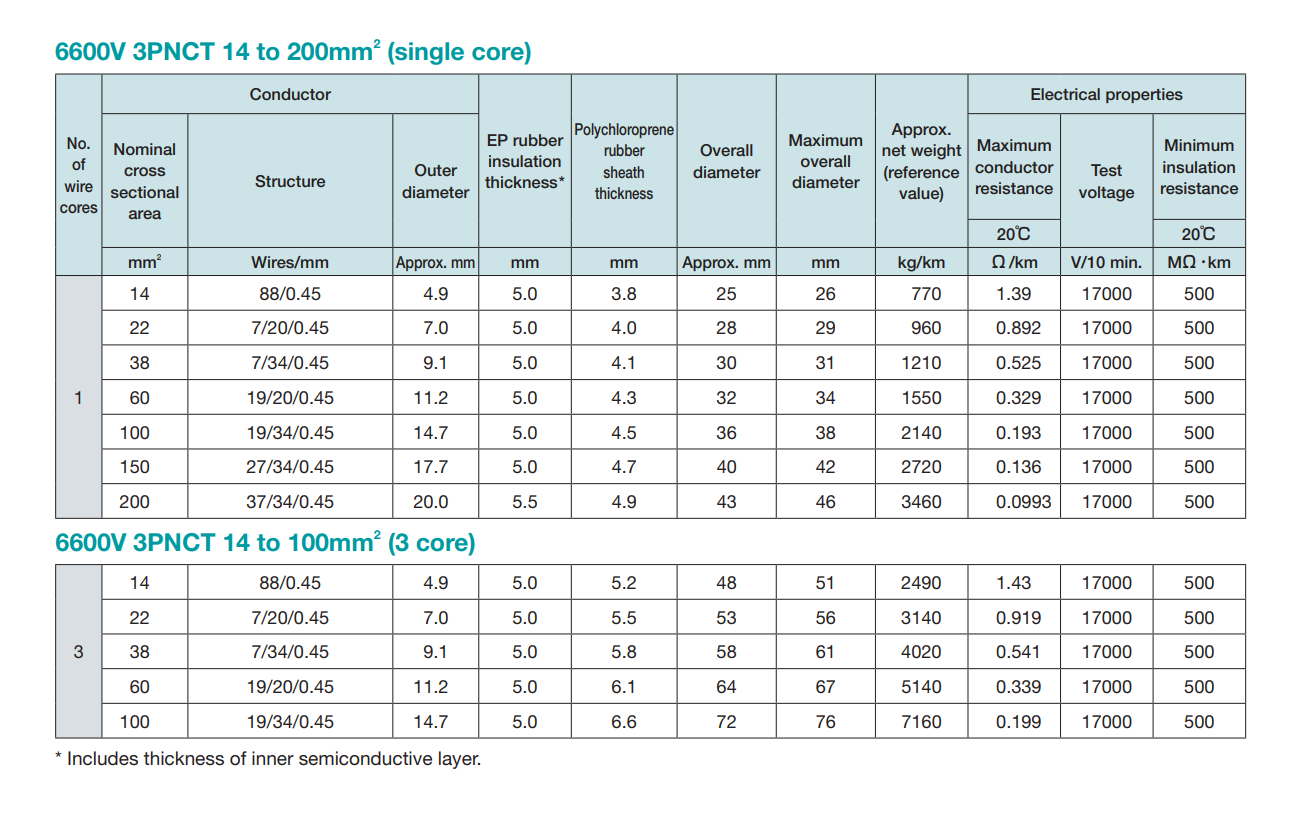

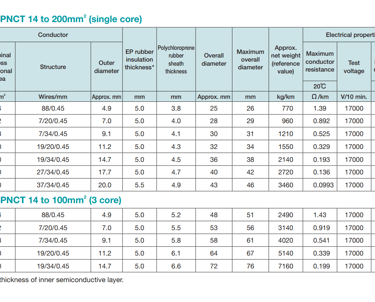

17. What are the available conductor sizes?

The cable is available in various conductor sizes, typically ranging from 14mm² to 200mm², to accommodate different current-carrying requirements.

18. How is the cable packaged for delivery?

Packaging methods vary by manufacturer but commonly include coils, reels, or drums, ensuring safe transportation and storage.

19. Can the cable be customized for specific applications?

Yes, manufacturers often offer customization options, including different core configurations, lengths, and additional protective layers, to meet specific application needs.

20. What maintenance practices are recommended for this cable?

Regular inspections for physical damage, proper tension management in reeling systems, and ensuring clean, dry conditions help maintain cable performance and longevity.

21. Is the cable suitable for mining applications?

Yes, its robust construction and resistance to harsh environmental conditions make it suitable for use in mining operations.

22. What is the expected service life of the cable?

While service life depends on usage conditions, proper installation and maintenance can result in a service life spanning several years.

23. Does the cable meet international standards?

In addition to JIS C 4353, the cable may comply with other international standards, such as IEC and UL, depending on the manufacturer and specific product certifications.

24. Can the cable be used in marine environments?

Yes, its resistance to moisture, salt, and mechanical stress makes it suitable for marine applications like shipyards and offshore platforms.

25. What testing is performed to ensure cable quality?

Manufacturers conduct various tests, including voltage withstand, insulation resistance, and mechanical durability tests, to ensure compliance with standards and performance requirements.

26. How does the cable perform in cold temperatures?

The EP rubber insulation maintains flexibility at low temperatures, preventing cracking and ensuring reliable performance in cold environments.

27. Is the cable resistant to ozone degradation?

Yes, EP rubber offers excellent resistance to ozone, preventing premature aging and degradation of the insulation material.

28. What is the cable's resistance to abrasion?

The polychloroprene sheath provides high abrasion resistance, protecting the cable from physical wear and extending its service life.

29. Can the cable be used in festoon systems?

While primarily designed for reeling applications, the cable's flexibility and durability also make it suitable for festoon systems, depending on specific system.

30. What is the maximum conductor resistance?

Conductor resistance varies by size; for example, a 14mm² conductor typically has a maximum resistance of 1.39 Ω/KM.

31. What is the test voltage for this cable?

The cable is typically tested at 17,000V for 10 minutes to ensure insulation integrity and safety.

32. What is the minimum insulation resistance?

The minimum insulation resistance is generally 500 MΩ·km at 20°C, ensuring effective electrical insulation.

33. How does the cable handle torsional stress?

Its construction allows it to withstand torsional stresses encountered during reeling and other dynamic operations without compromising performance.

34. Is the cable suitable for use in hazardous locations?

While the cable offers robust protection, suitability for hazardous locations depends on compliance with specific safety standards and certifications required for those environments.

35. Where can I purchase the Type 3PNCT Reeling Rubber Cable?

You can purchase this cable from authorized distributors or directly from manufacturers specializing in industrial and high-voltage cables.
