Type (V) NSSHCGEOEU 0.6/1KV: Essential Cables for Mining Power
When it comes to powering mobile equipment and machines in the demanding environment of underground mining, the need for reliable, durable, and efficient power supply cables is paramount. Among the top choices for such applications is the Type (V) NSSHCGEOEU 0.6/1KV coal cutter cable. Specifically designed for chain operation with a concentric earth conductor, this cable plays a crucial role in the safe and effective functioning of coal cutting machines and other mining equipment.
Introduction
In the harsh, rugged environment of underground mining, coal cutting machines and other mobile equipment require a power supply connection that can withstand extreme mechanical stress, frequent flexing, and harsh environmental conditions. This is where Feichun Cable's Type (V) NSSHCGEOEU 0.6/1KV coal cutter cable excels. With its robust design and high-performance features, this cable ensures uninterrupted power delivery, enhancing productivity and safety in mining operations.

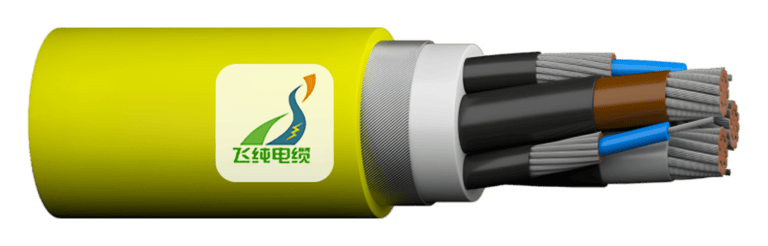

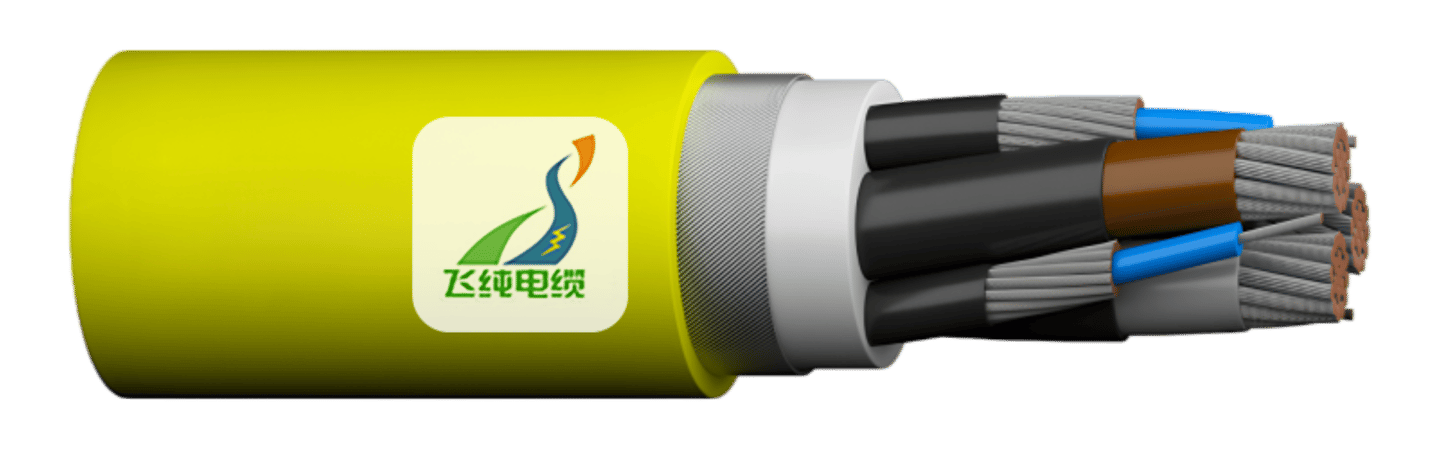

Feichun Cable Type (V) NSSHCGEOEU 0.6/1KV Coal Cutter Cable with Concentric Earth Conductor
Feichun’s Type (V) NSSHCGEOEU is a specialized coal cutter cable designed to deliver consistent power in the most demanding chain operation scenarios. Rated at 0.6/1KV (Um 1.2KV), it excels in underground mining and open-pit environments, trailing behind coal cutting machines, conveyor drives, stacker-reclaimers, and drilling jumbos within cable protection chains that absorb heavy tensile forces.
Key Features & Construction
The Type (V) NSSHCGEOEU 0.6/1KV cable boasts a range of features that make it ideal for mining applications:
Concentric Earth Conductor
One of the standout features of this cable is its concentric earth conductor. This helically applied steel-copper braid is situated between the inner and outer sheaths, providing a robust earth path and mechanical reinforcement. This design ensures that the cable can handle the mechanical stresses and electrical demands of mining operations.
Flexible Copper Cores
The cable utilizes very finely stranded tinned copper (class FS) conductors, which offer maximum flexibility and resistance to metal fatigue. This flexibility is crucial in mining environments where the cable must navigate around machinery and through confined spaces without breaking.
EPR Insulation (PROTOLON)
The heat-resistant rubber core insulation, known as PROTOLON, maintains dielectric integrity up to 90°C. This insulation can withstand the thermal cycling associated with the frequent starts and stops of heavy machinery, ensuring consistent power delivery.
Outer Conductive Layer
Beneath the inner sheath, an easy-strip semi-conductive rubber layer facilitates smooth conductor transitions and controlled stress distribution. This layer enhances the cable's overall reliability and durability.
Inner & Outer Sheaths
The cable's inner and outer sheaths provide additional protection:
- Inner Sheath: The EPR compound GM1b protects the cores from mechanical abrasion.
- Outer Sheath: The PROTOFIRM PCP sheath offers resistance to oil, ozone, UV, and water, making it suitable for splash zones and temporary immersion.
Mechanical & Environmental Performance
The Type (V) NSSHCGEOEU 0.6/1KV cable is designed to perform reliably under rigorous mechanical and environmental conditions:
- Tensile Strength: Rated at 15 N/mm², it withstands the pull-out forces of cable handlers.
- Torsional Endurance: The cable accommodates ±25°/m of twist without damaging the conductors.
- Bending Radius: The minimum bending radius is 2.3 × D under tensile load, with a recommended 20 × D between direction changes to prevent kinking.
Temperature Range
The cable is built to operate in a wide range of temperatures:
- Fixed: –40°C to 80°C
- Flexible: –20°C to 60°C
Short-Circuit Rating
In the event of a fault condition, the conductor temperature can rise up to 250°C, ensuring that the cable can handle short-circuits without failing.
Certifications & Standards
Feichun’s NSSHCGEOEU cable meets several stringent certifications and standards, ensuring its quality and safety:
- DIN VDE 0250-812
- DIN EN 60228/IEC 60228
- DIN VDE 0298-4
- DIN EN 60811-404
- DIN EN 60332-1-2
Additionally, the cable is approved by MSHA P-07-KA140034, MA China, EAC, and BAS Bosnia-Herzegovina. It is also compliant with RoHS and the Low Voltage Directive (2014/35/EU).
Ideal Applications
The Type (V) NSSHCGEOEU 0.6/1KV cable is engineered for a variety of mining applications where its durability and flexibility are paramount:
Coal Cutter Power Feeds
This cable is ideal for trailing behind shearers and continuous miners in cable chains. Its robust construction ensures it can withstand the constant movement and mechanical stress associated with these machines.
Conveyor & Stacker Drives
In conveyor and stacker systems, the cable resists abrasion on idler rollers and long travel distances. Its flexibility allows it to navigate the complex routing paths typical in these systems.
Drill Jumbo & Bolter Cables
For drill jumbos and bolters, the cable’s flexible routing capabilities are essential in confined drift headings. It can bend and twist without damaging the conductors, ensuring reliable power delivery.
Reclaimer & Shuttle Car Lines
The cable's ability to withstand frequent flexing, torsion, and exposure to hydraulic fluids makes it ideal for reclaimer and shuttle car lines. These applications require a cable that can handle the harsh conditions and constant movement.
Conclusion
Feichun’s Type (V) NSSHCGEOEU 0.6/1KV coal cutter cable combines robust mechanical design, premium materials, and stringent certification, delivering uninterrupted power and extended service life in the harshest mining conditions. Whether it’s powering coal cutters, conveyors, drill jumbos, or other mobile equipment, this cable is engineered to meet the demanding requirements of underground mining and open-pit environments.
In my experience, the reliability and durability of the Type (V) NSSHCGEOEU 0.6/1KV cable make it an invaluable asset in any mining operation. Its ability to withstand extreme mechanical stress and harsh environmental conditions ensures that it will continue to deliver consistent power, enhancing both productivity and safety.
References
1. [NSSHCGEOEU 0.6/1kV Coal Cutter Cable (Low Tensile Stress)](http://www.caledoniancable.com/English/product/Mining_Cables/VDE/NSSHCGEOEU-Coal-Cutter-Cable-LTS.html)
2. [Type (V) NSSHCGEOEU Coal Cutter Cables: Mining Power Supply](https://www.reelingcable.com/type-v-nsshcgeoeu-coal-cutter-cables-mining-power-supply-guide)
3. [Nsshcgeoeu 0.6/1kv (High Tensile Stress) for Underground Mining](https://repspower.en.made-in-china.com/product/OZvArlpPnwUR/China-Nsshcgeoeu-0-6-1kv-High-Tensile-Stress-for-Underground-Mining-Armored-Coal-Cutter-Cable.html)
By carefully considering the specific requirements of your mining operations and selecting a cable like the Type (V) NSSHCGEOEU 0.6/1KV, you can ensure that your machinery operates efficiently and safely, even in the most challenging conditions.
Frequently Asked Questions (FAQ)
Q: What makes this cable suited for chain‑operation on coal cutters?
A: It features a concentric steel‑copper earth braid between sheaths and double‑concentric control conductors, providing both robust mechanical support and reliable earth/monitoring paths when trailing behind machines.Q: How does the cable resist tensile forces in cable protection chains?
A: Its finely stranded tinned copper cores (class FS) and 15 N/mm² tensile rating absorb dynamic pulls without conductor breakage.Q: Can it withstand the abrasion inside drag‑chain systems?
A: Yes. The PROTOFIRM PCP outer sheath is engineered for high abrasion resistance, guarding against wear on sliding surfaces.Q: What is the cable’s bending radius under load?
A: Maintain at least 2.3 × D at 5 N/mm²; ensure 20 × D between directional changes to avoid kinking.Q: How does it handle torsional stress from rotating machinery?
A: The design tolerates ±25°/m of twist, ideal for equipment like stacker‑reclaimers and drill jumbos that rotate under load.Q: What temperature extremes can it endure?
A: Flexible use from –20 °C to 60 °C; fixed installation from –40 °C to 80 °C, ensuring performance in cold mine shafts and hot stockyards.Q: How does the cable manage moisture and water immersion?
A: The CM/CPE sheath resists water ingress, allowing temporary immersion in non‑potable mine water without degradation.Q: Is it oil‑resistant around hydraulic equipment?
A: Yes. The PCP compound repels hydraulic fluids and lubricants commonly found near conveyor drives and loaders.Q: How is EMI (electromagnetic interference) minimized?
A: The concentric earth braid and control conductors form an effective screen, protecting sensitive control circuits on drilling jumbos.Q: What flame standards does it meet?
A: It complies with EN/IEC 60332‑1‑2, reducing flame spread risk in confined underground galleries.Q: How to inspect for mechanical damage?
A: Perform monthly visual checks for cuts, sheath thinning, and exposed conductors; test insulation resistance with a megohmmeter.Q: Can it power long‑distance conveyors in open pits?
A: Yes. Its UV‑resistant sheath and high tensile strength suit long travel and exposure to sunlight.Q: What is the test voltage rating?
A: Power cores are tested at 3 kV, control cores at 2 kV, ensuring dielectric integrity under field conditions.Q: How to repair a severed cable underground?
A: Use factory‑approved compression joints, re‑insulate with EPR splice kits, and re‑seal the sheath per manufacturer guidelines.Q: What is the maximum short‑circuit temperature?
A: Conductors withstand up to 250 °C during short‑circuit faults.Q: How does the cable perform in dusty environments?
A: The robust sheath prevents dust ingress, and the cable’s smooth surface resists clogging in coal dust‑laden areas.Q: Can it be used on rock‑drilling jumbos?
A: Absolutely. Its flexibility and torsional tolerance handle the movement and vibration of drilling operations.Q: How to prevent cable crushing under heavy equipment?
A: Route cables through cable trays, rollers, or elevated festoon systems to avoid pinch points under loaders.Q: What maintenance extends cable service life?
A: Keep bending radius, avoid sharp edges, clean with mild detergent, and inspect for sheath wear every 30 days.Q: Is the cable MSHA‑approved for U.S. mines?
A: Yes. It carries MSHA P‑07‑KA140034 certification for safe underground coal mine use.Q: How does it handle thermal cycling from motor starts?
A: The EPR insulation resists thermal stress from frequent motor starts on conveyor drives.Q: What protective equipment is needed for on‑site repairs?
A: Use insulated gloves, arc‑flash gear, and verify de‑energization before any splice or inspection.Q: How to manage static charging on long conveyors?
A: The concentric earth braid continuously drains static, preventing buildup on long travel runs.Q: What is the cable’s travel speed capability?
A: Suitable for up to 120 m/min in reeling operations; consult Feichun for higher‑speed requirements.Q: Can it resist chemical exposure from cleaning agents?
A: The PCP sheath withstands most mine‑grade solvents; rinse promptly after exposure to harsh chemicals.Q: How to test the concentric earth conductor?
A: Measure earth continuity with a low‑ohm meter between power cores and the outer braid.Q: Is it suitable for stacker‑reclaimer booms?
A: Yes. Its UV resistance and abrasion toughness make it ideal for outdoor boom cables.Q: How to store cables when not in use?
A: Coil on a clean drum, keep off the ground, and store in a dry, shaded area to prevent UV damage.Q: What is the recommended pull tension during installation?
A: Do not exceed 15 N/mm²; use cable rollers to guide heavy lengths into place without overstressing.Q: How does the cable handle extreme humidity?
A: The sheath compounds resist moisture absorption, preventing swelling or softening in damp mine atmospheres.Q: Can it power shuttle cars in return entries?
A: Yes. Its flexibility, tensile strength, and earth screening suit the dynamic movements of shuttle cars.Q: How does the cable manage vibration from heavy machinery?
A: The finely stranded conductors and flexible insulation absorb vibrational energy without fatigue.Q: What marking should be visible on the cable?
A: Each length is marked with Feichun, Type NSSHCGEOEU, 0.6/1 kV, batch number, and manufacture date for traceability.Q: How does the cable improve uptime in mining operations?
A: Its durable construction, environmental resistance, and ease of inspection reduce unplanned downtime for repairs.Q: Are OEM splices available for emergency field repairs?
A: Feichun provides approved splice kits and training to ensure safe, reliable field terminations.
